TRACKGAUGE SOLAR
THE EASIEST WAY TO MEASURE TRACK AND SWITCH GEOMETRY
The Trackgauge Solar measurement device provides the easiest way to measure the gauge geometry of tracks and switches. Measurement results can be analysed directly on the display of this very lightweight device. The data can be imported via USB into the included Dari® software for further analysis and reporting.
The TGS gauge is a lightweight, reliable, easy-to-use and very accurate device featuring a temperature compensation system. Because of its simple design and robust structure, the gauge is both durable and highly reliable. The TGS is equipped with a solar battery enabling continuous operation and a colour display legible even in direct sunlight.
Contents:
The Trackgauge Solar measurement device provides the easiest way to measure the gauge geometry of tracks and switches. Measurement results can be analysed directly on the display of this very lightweight device. The data can be imported via USB into the included Dari® software for further analysis and reporting.
The TGS gauge is a lightweight, reliable, easy-to-use and very accurate device featuring a temperature compensation system. Because of its simple design and robust structure, the gauge is both durable and highly reliable. The TGS is equipped with a solar battery enabling continuous operation and a colour display legible even in direct sunlight.
Contents:
- Trackgauge Solar device
- 2 AA Rechargeable Batteries
- Transport box
Benefits:
- Easy operation of the device during measurements and transport

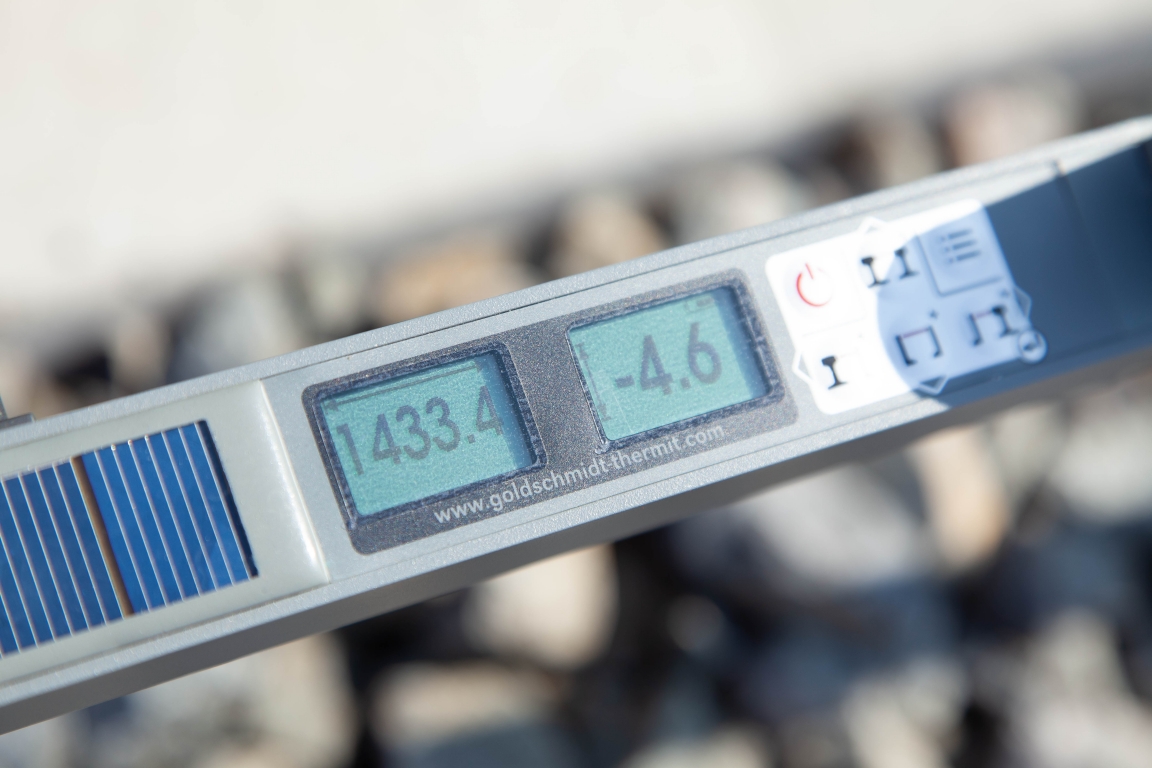

- Display, easy to read even in direct sunlight
- Measurement results independent of environmental conditions
- Available as standard for the 1435 mm track gauge, other track gauges are available on request
- Solar panel extending the operation time of the device in the right conditions
-
Export of measured track geometry data to Dari® software via USB allows for the export of measured track geometry data to MS Excel, MS Word documents, as well as in PDF, DXF, CSV formats
Specifications
| Track Gauge | Accuracy: ±0.3 mm |
| Measurement range: -20 ... +50 mm | |
| Cant | Accuracy: ±0.5 mm |
| Measurement range: ±250 mm | |
| Left / right flangeways (groove) | Accuracy: ±0.4 mm |
| Measurement range: 26 ... 75 mm | |
| Twist (calculated) | Accuracy: ±1 mm |
| Gradient (calculated) | Accuracy: ±6 mm |
| Measuring increment | 0.5 m; 1.0 m; 5.0 m; 10.0 m |
| Types of rails | Vignol or Groove |
| Dimensions (L x H x W) for 1435 mm track | 1600 x 250 x 115 mm |
| Weight (standard version for 1435 mm track) | 2.8 kg |
| Memory capacity | 8 000 measurement files |
| Operating time | Up to 20 h |
| Operating conditions | Temperature: -20 … +45 ºC |
| Humidity: 15 … 85 %, no condensation |

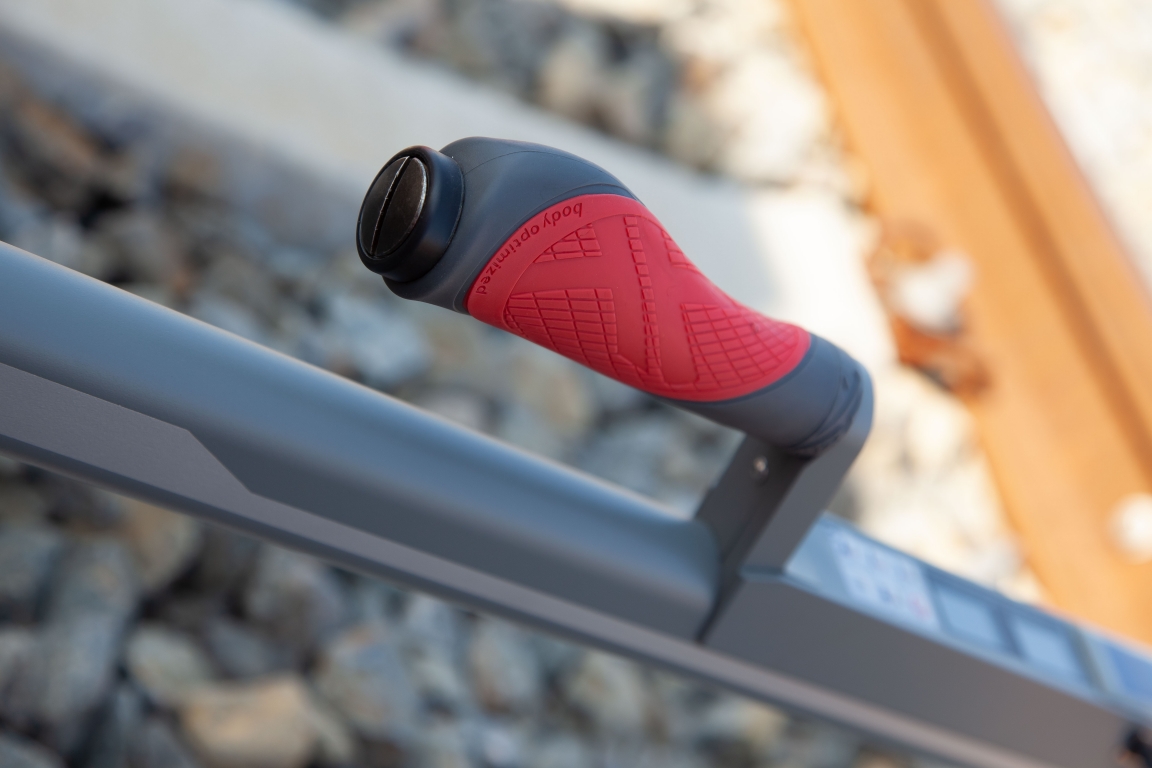

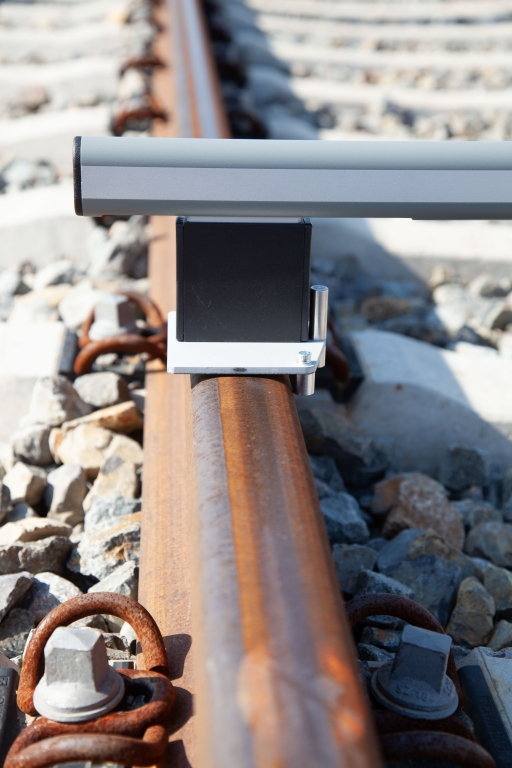

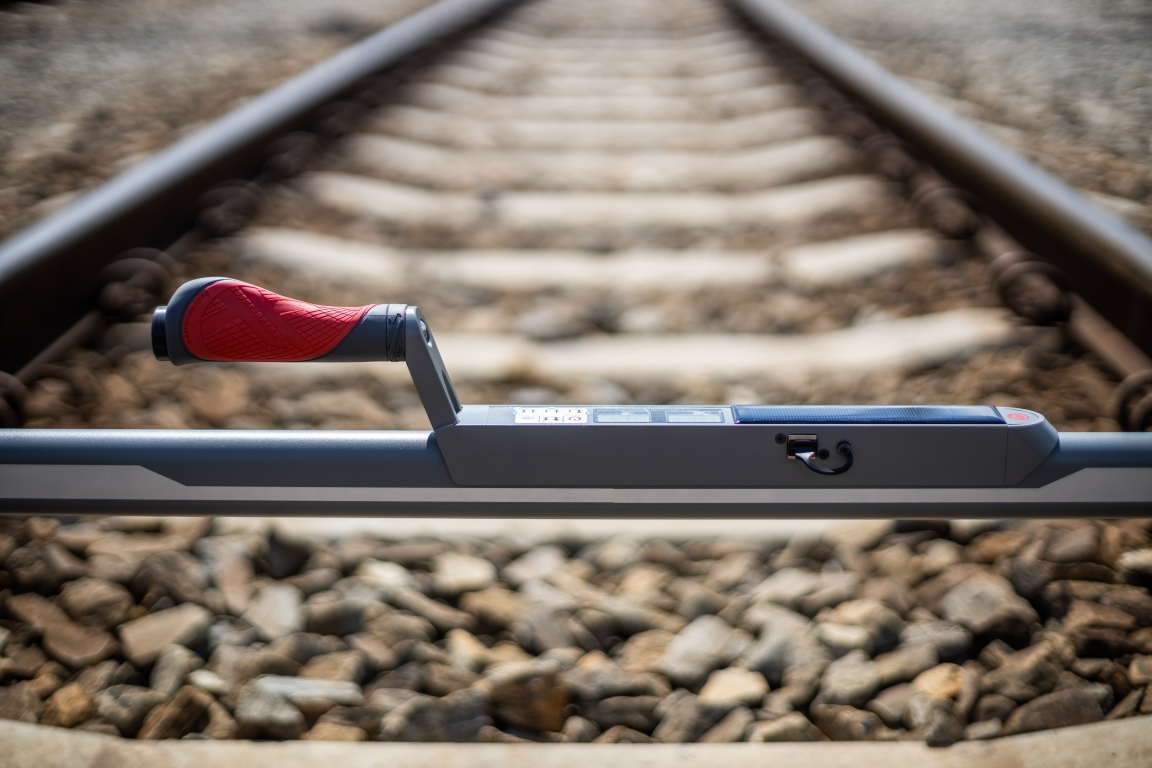

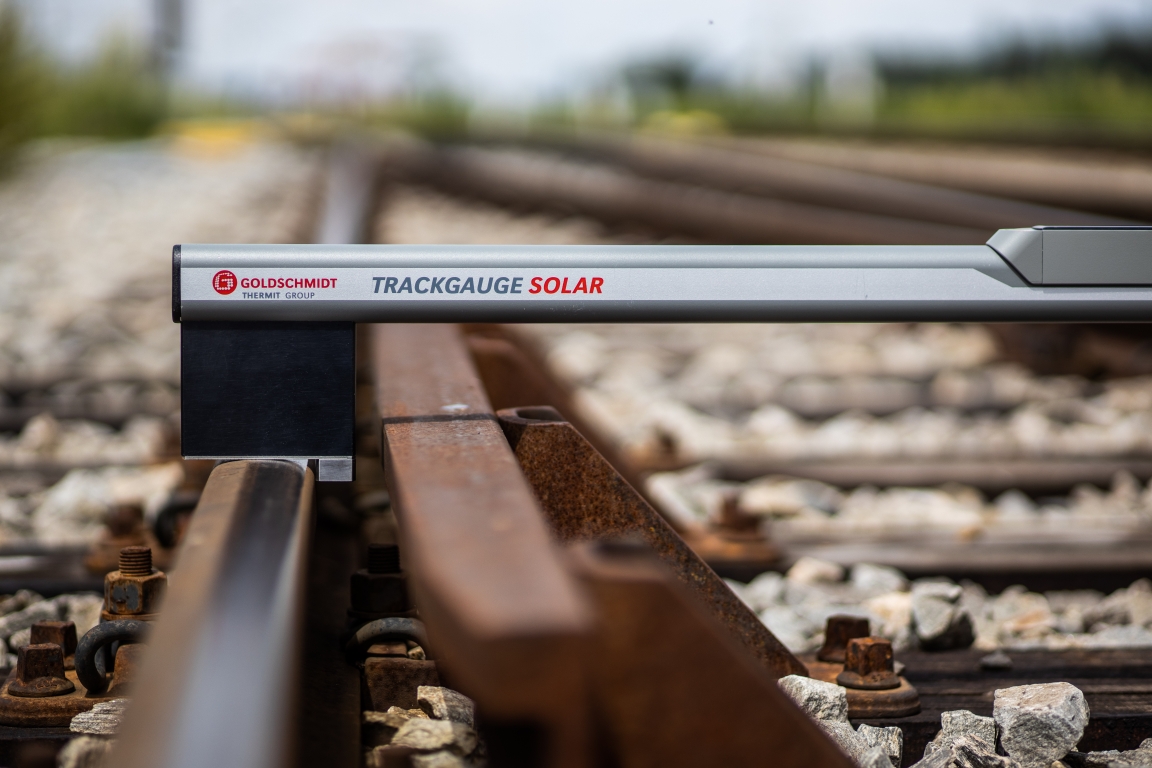

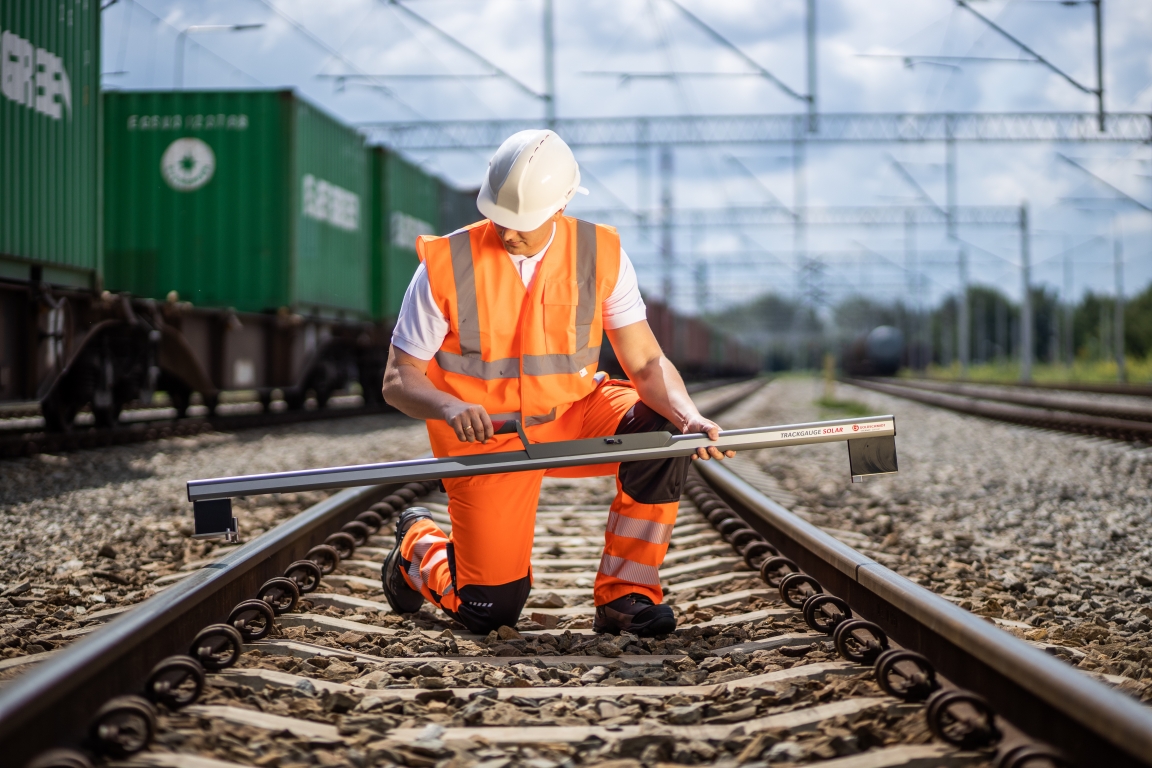

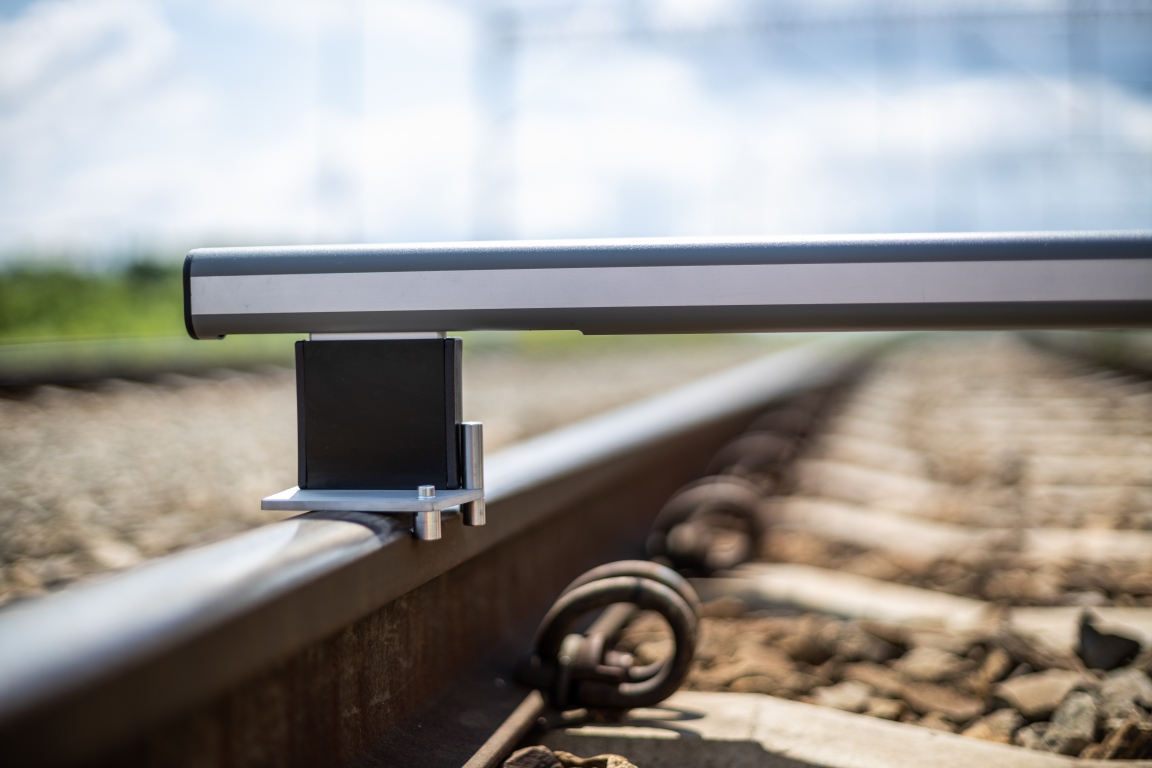

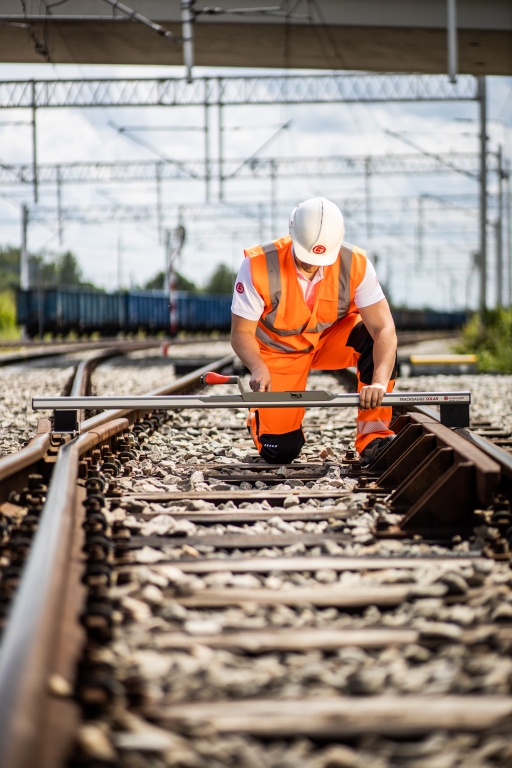

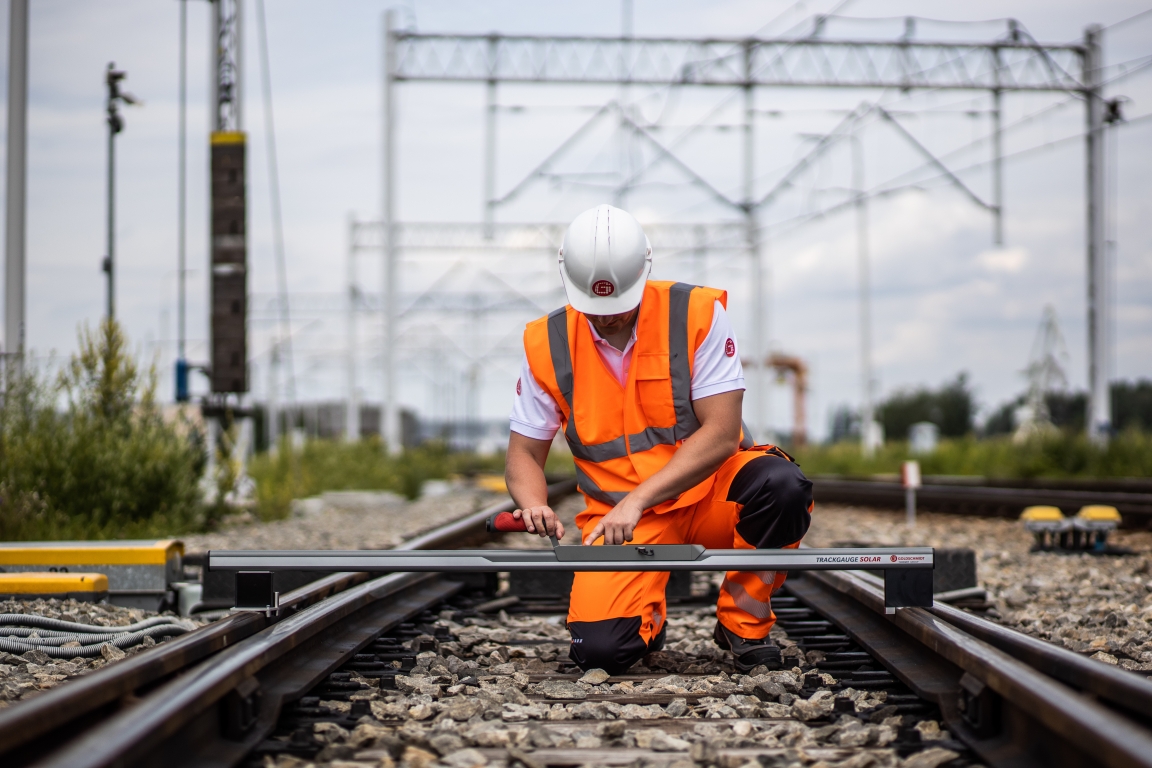

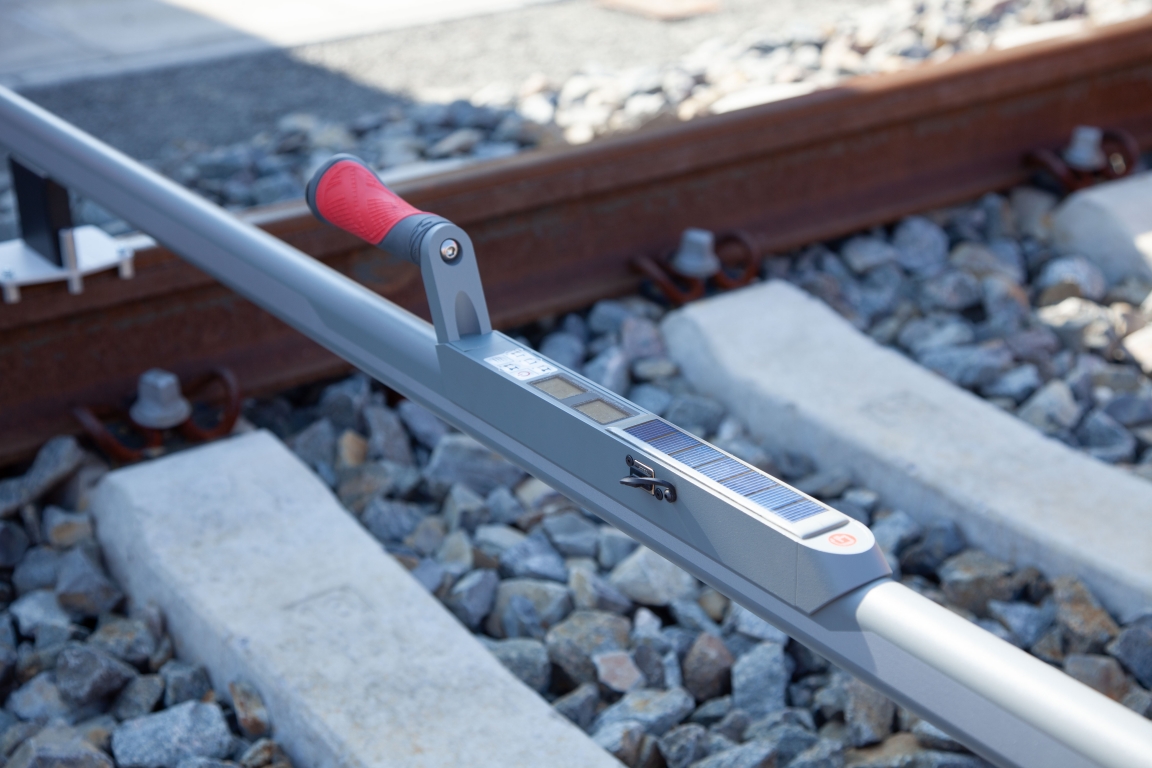

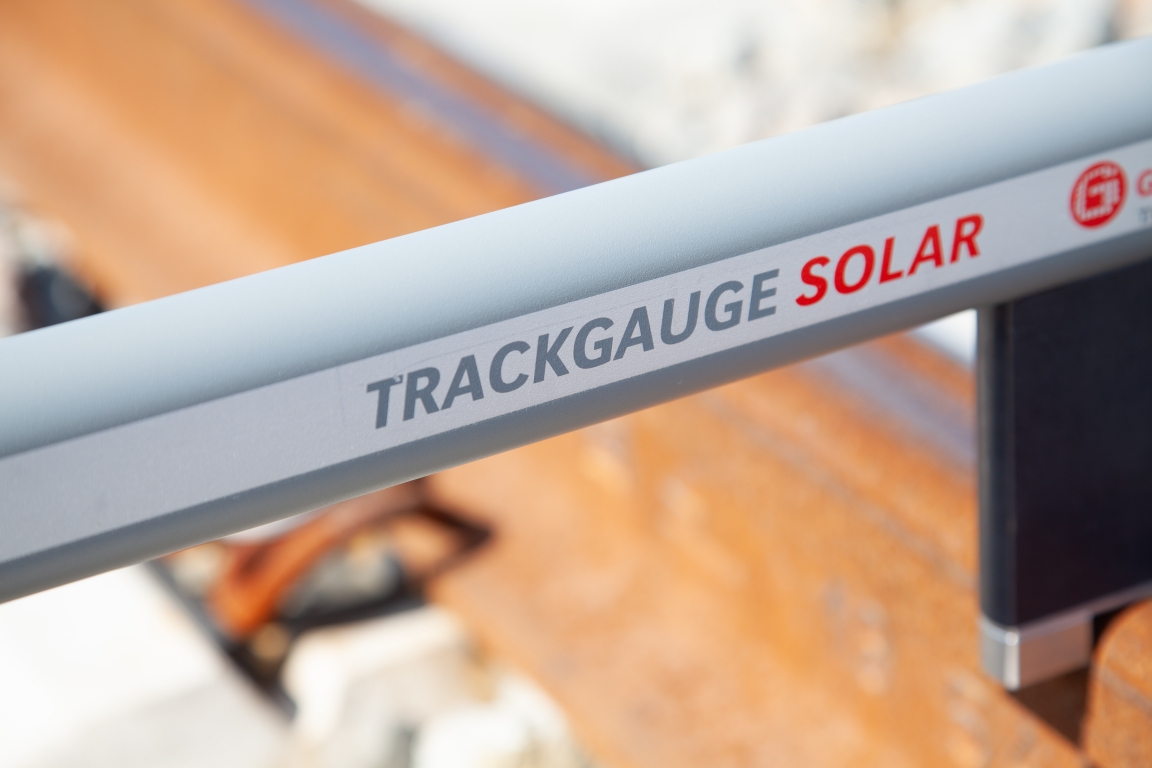

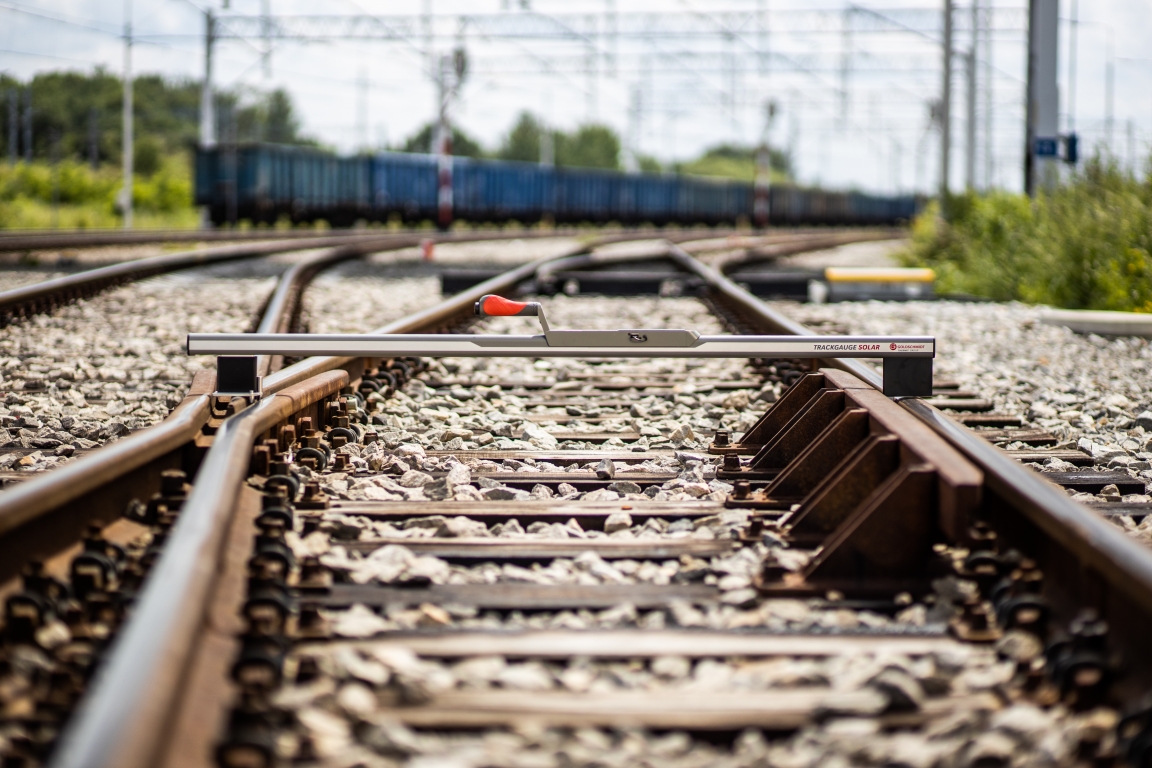

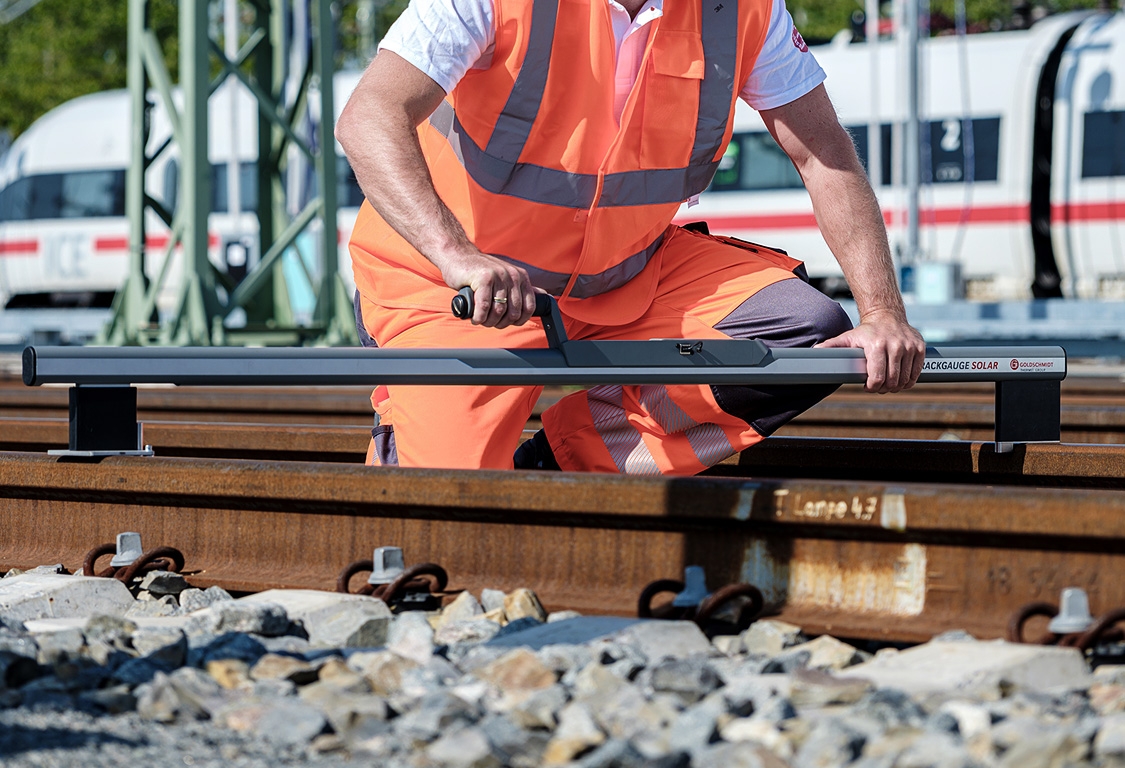

Gallery
