TRACKSCAN COMPACT

TRACKSCAN COMPACT

The TRACKSCAN COMPACT (TSC) trolley measures track geometry. The measurement results include values of track gauge, cant, horizontal and vertical irregularities along with the calculated gradient and twist parameters. Thanks to its user-friendly and modular design the trolley can be transported by one person and fixed on a track in less than 5 minutes.

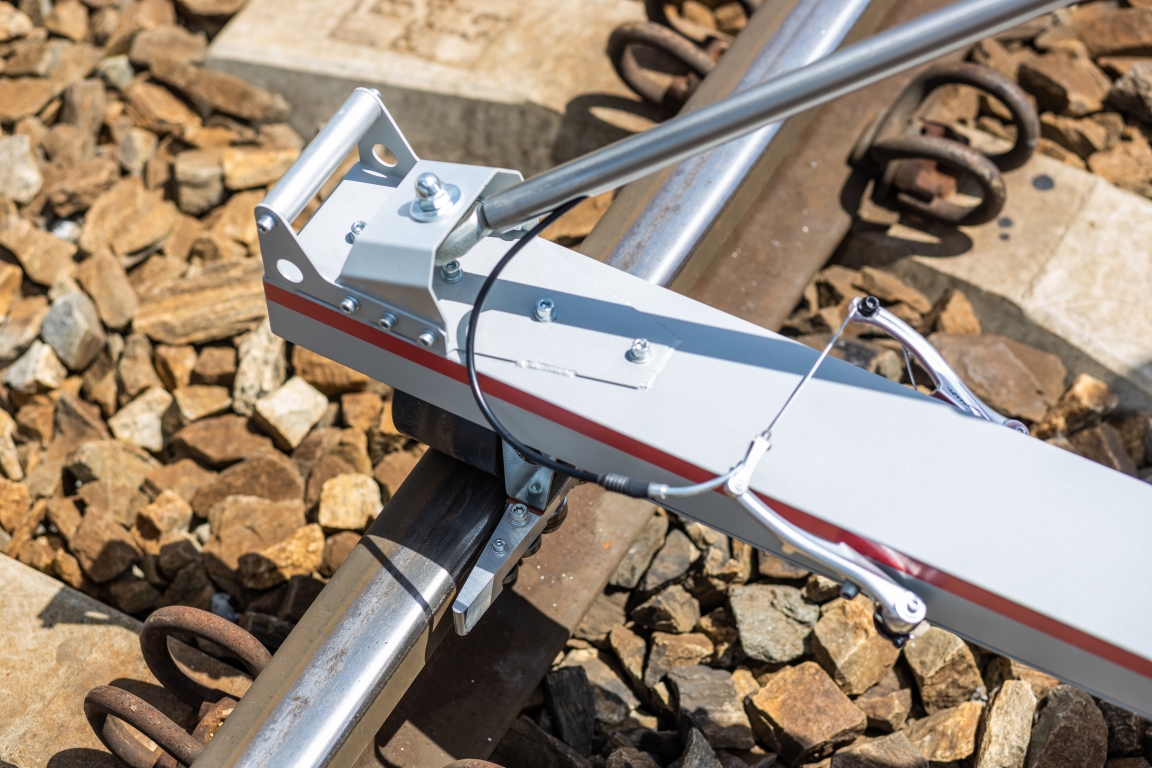

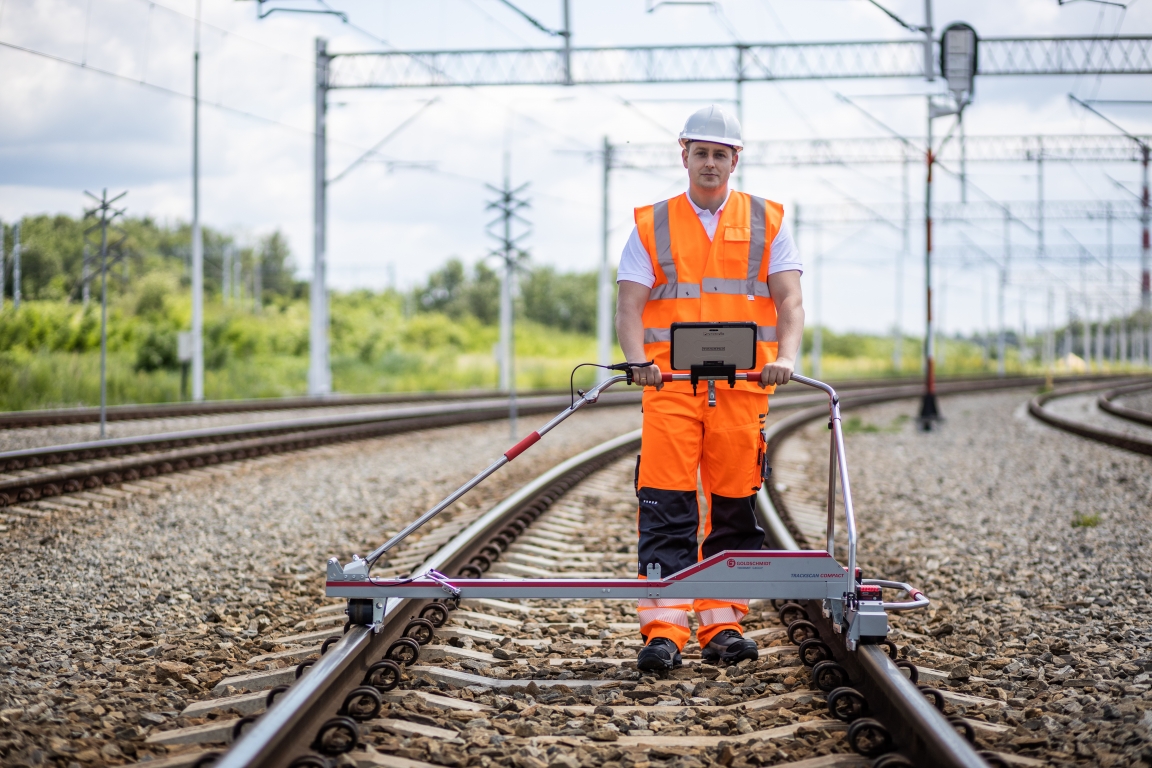

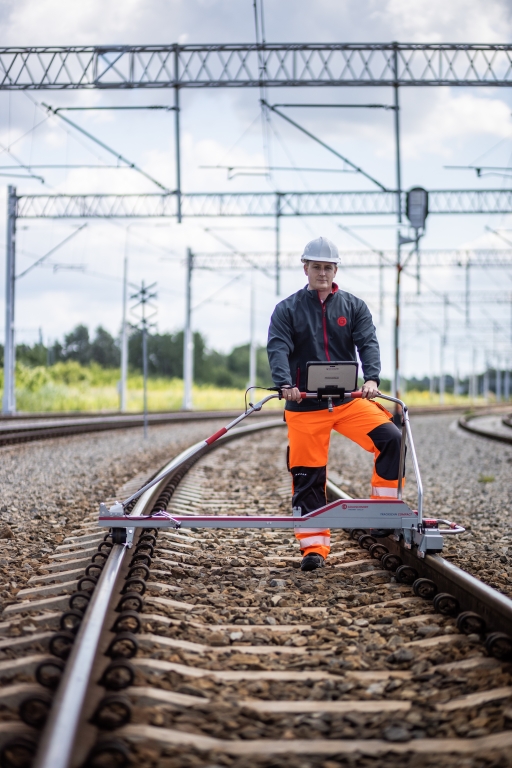

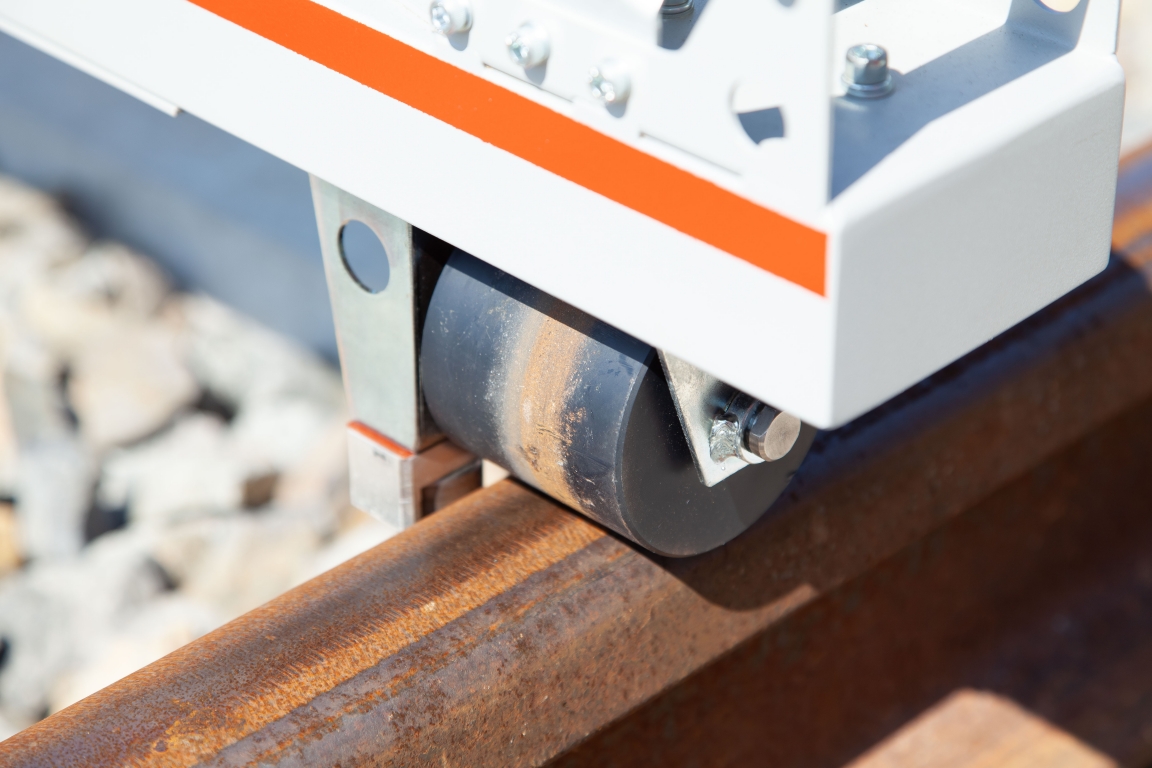

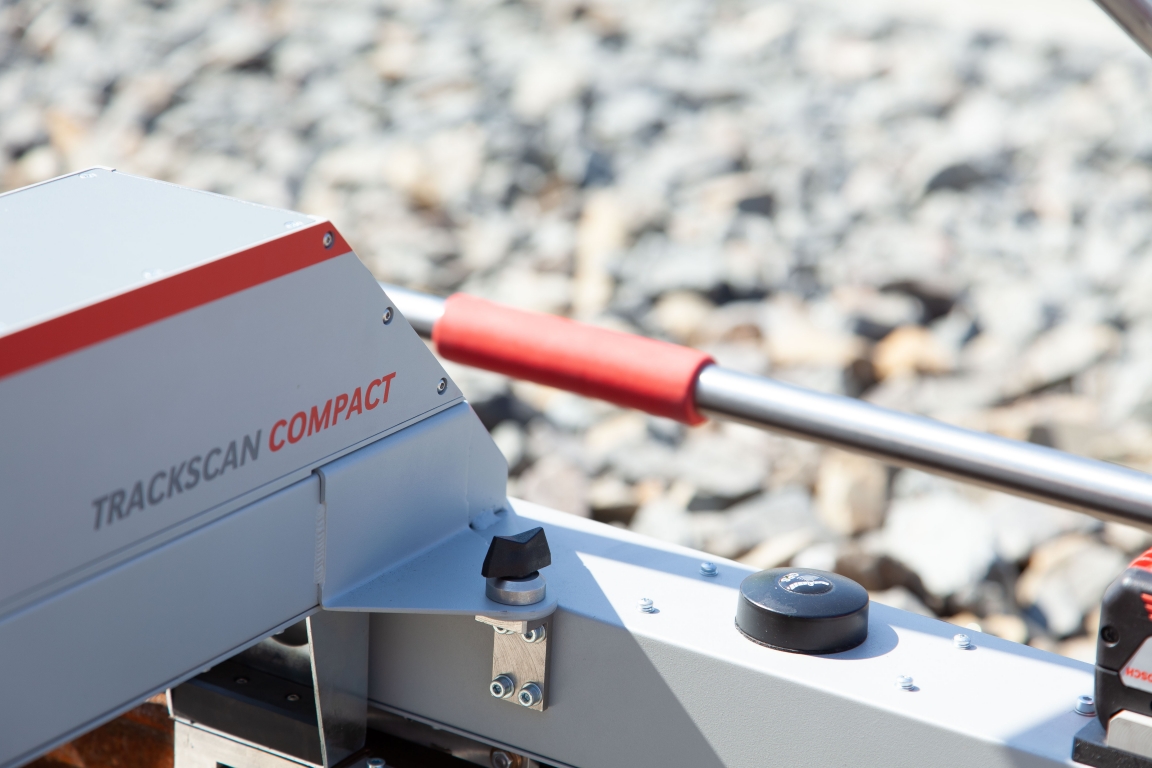

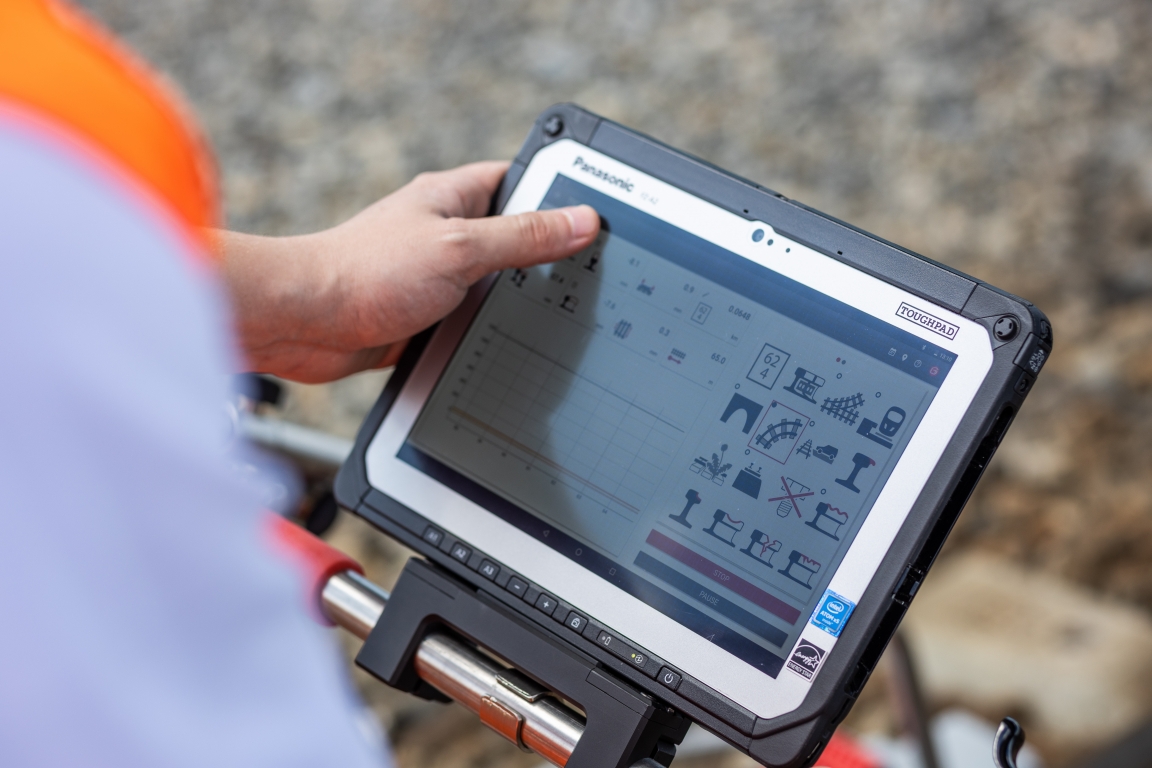

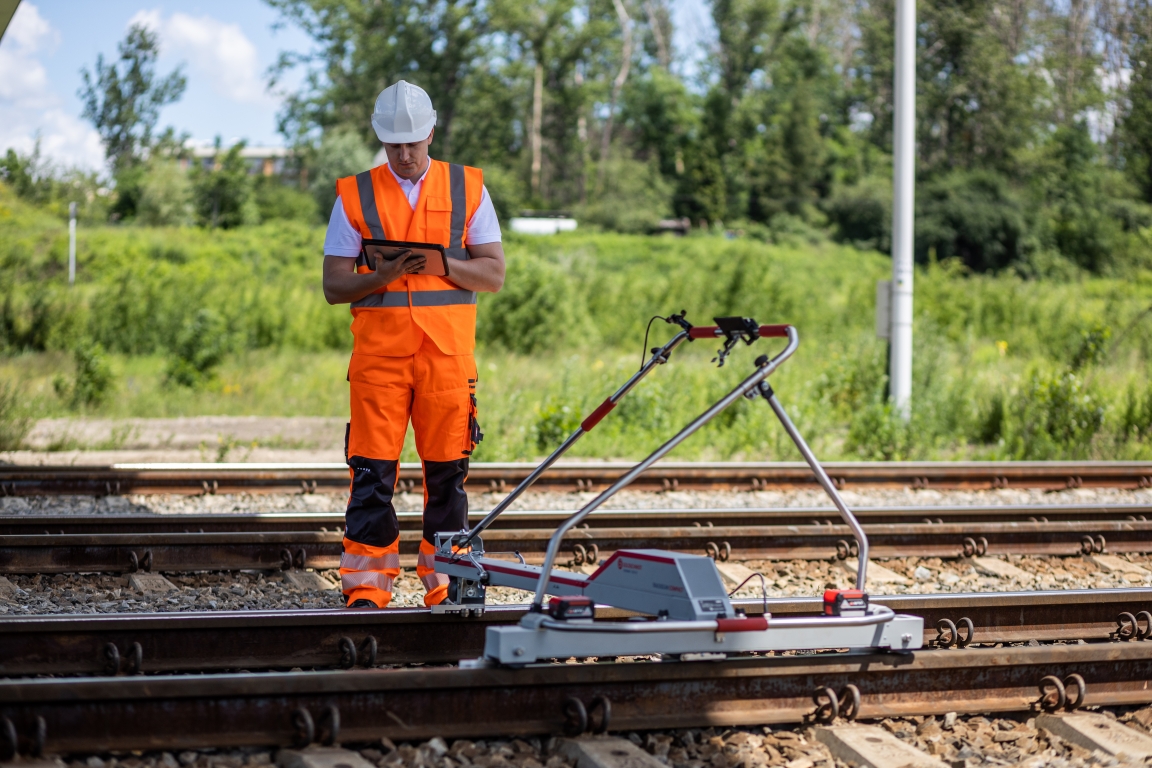

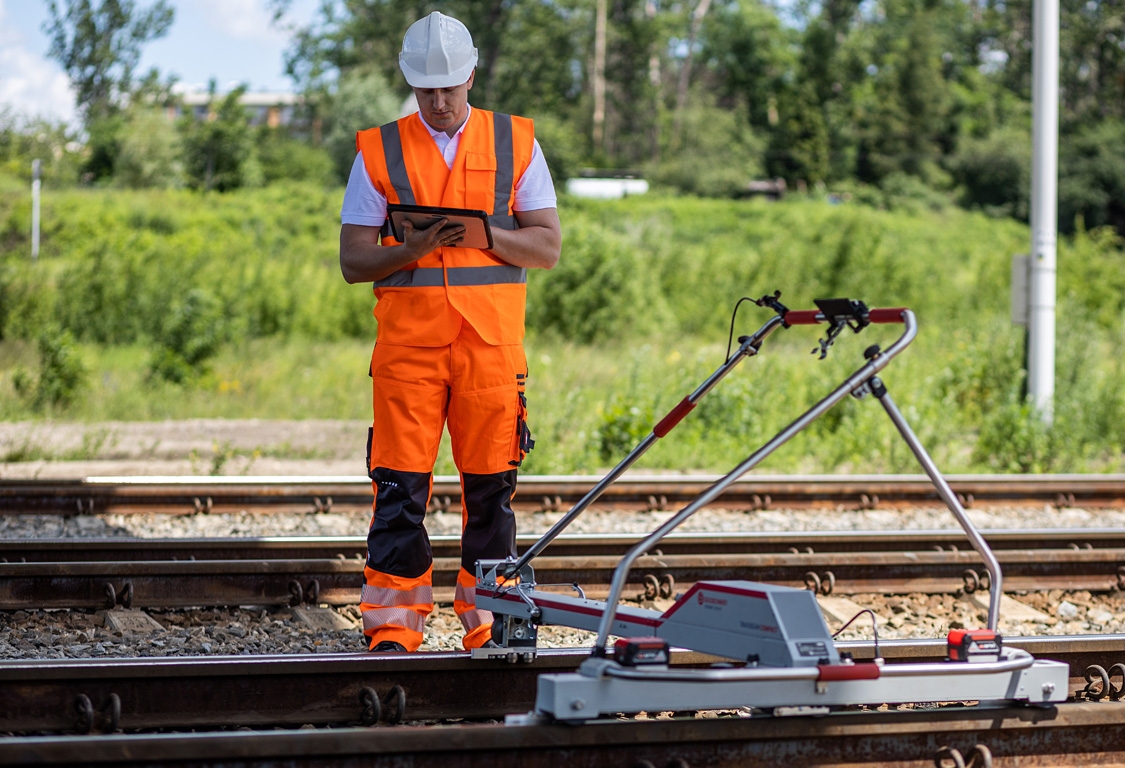

The device is operated with an Android application on a tablet, on which all measurement data is displayed immediately. Not only the measured data but also the covered distance, the GPS position and the visual inspection of the track condition are recorded by the GOLDSCHMIDT APP. The measurement data is uploaded directly to our database solution DARI® so the data can be analysed and accessed globally.

The trolley is supplied with the GeoTEC System software (for PCs) enabling, among other things, the graphic presentation and comparison of measurement results as well as the printing of measurement reports or calculating typical track quality factors. Measurement results are also available in the tabular form containing track defect locations. Measurement data can be exported in MS Word, MS Excel and PDF formats.


Screenshot of the PC measurement data analysis and reporting software delivered with the trolley

Specifications

Measured parameters Track gauge, cant, vertical irregularities, horizontal irregularities
Measurement increment 0.5 m; 0.25 m
Ranges Track gauge: -15 ÷ +50 mm of the nominal value
Cant: ±225 mm
Vertical irregularities: ±2 mm
Horizontal irregularities: ±5 mm
Accuracy Track gauge: from ±0.5 mm
Cant: ±1.5 mm
Vertical irregularities: ±0.2 mm
Horizontal irregularities: ±0.2 mm
Operating conditions Temperature: -20 ÷45 °C
Humidity: 15 ÷ 85%, no condensation
Memory capacity 60 000 km
Weight 25.7 kg
Functionality Trolley records the measurement route using the on-board GPS receiver
10’ waterproof and dust-tight (IP67) tablet for outdoor operation
Durable battery lasting up to 10 hours of continuous operation
Software for printing measurement reports, archiving and comparing measurement results
Optionally available Replaceable batteries making continuous operation possible
Availability The trolley is available for all track gauges
Calculated parameters Width gradient
Track twist
Horizontal and vertical irregularities on a chord of up to 20 m
Data formats PDF, MS Word, MS Excel
