The TSC trolley measures track geometry. The measurement
results include values of track gauge, cant, horizontal and vertical irregularities along with the calculated gradient and twist parameters.
Track measurement

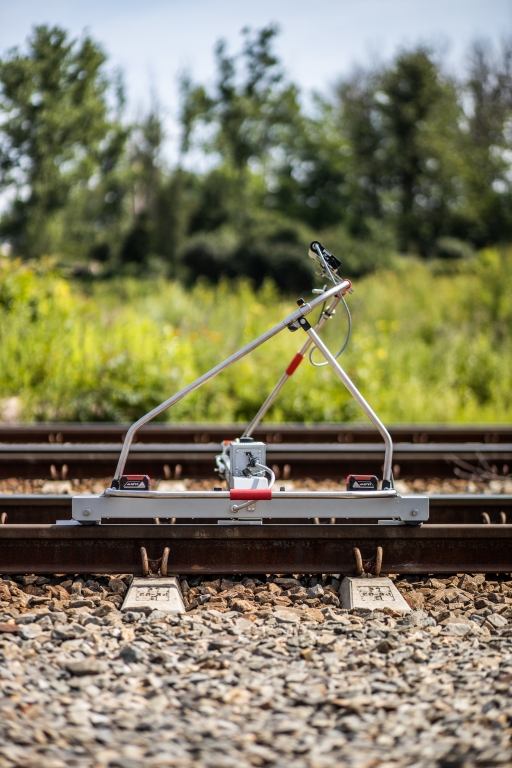

Back to the listTRACKSCAN INERTIAL

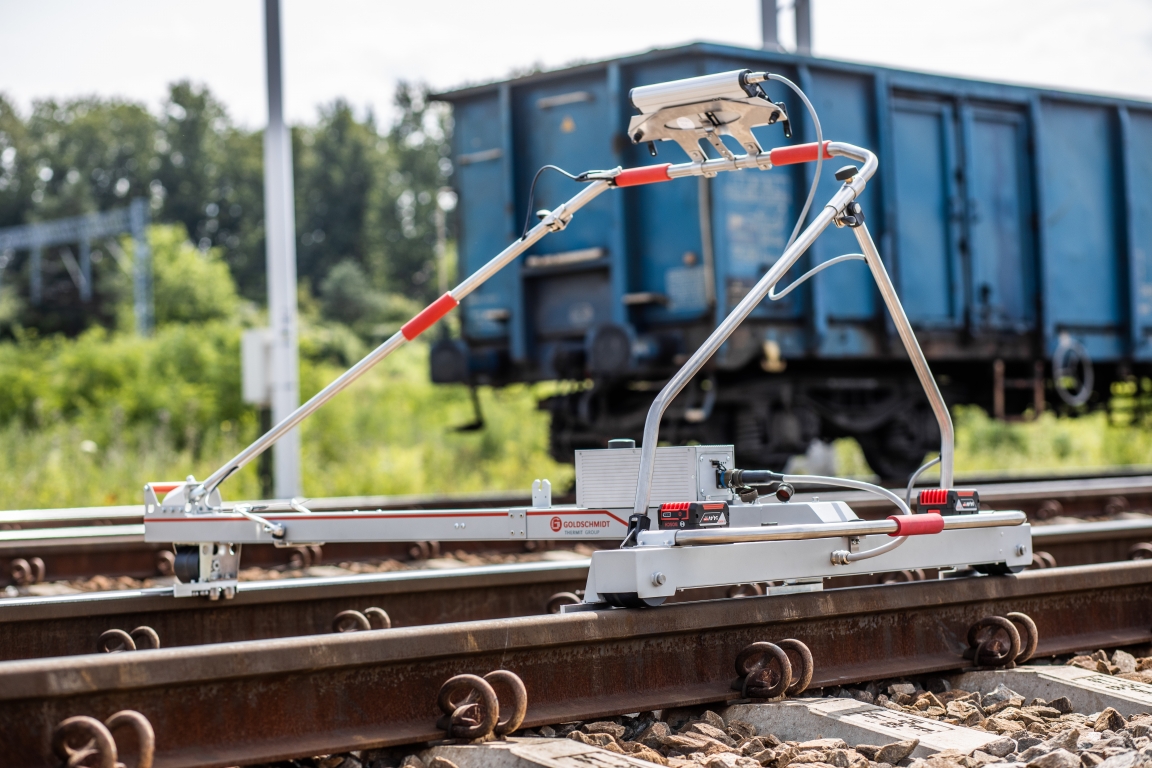

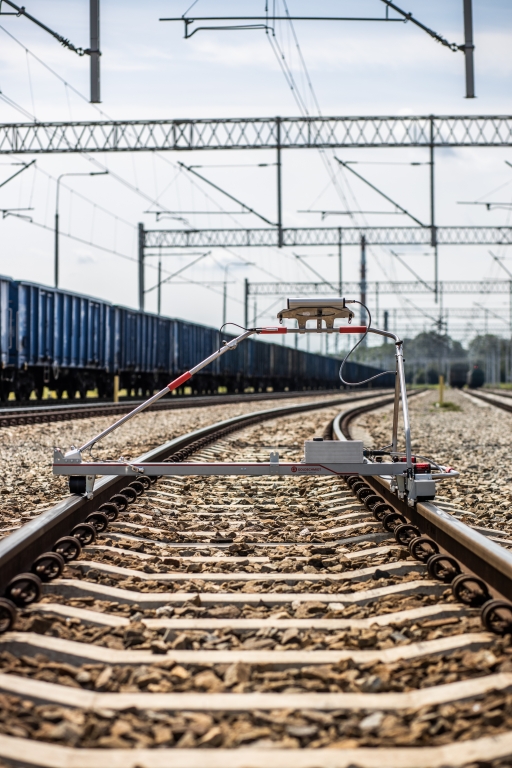

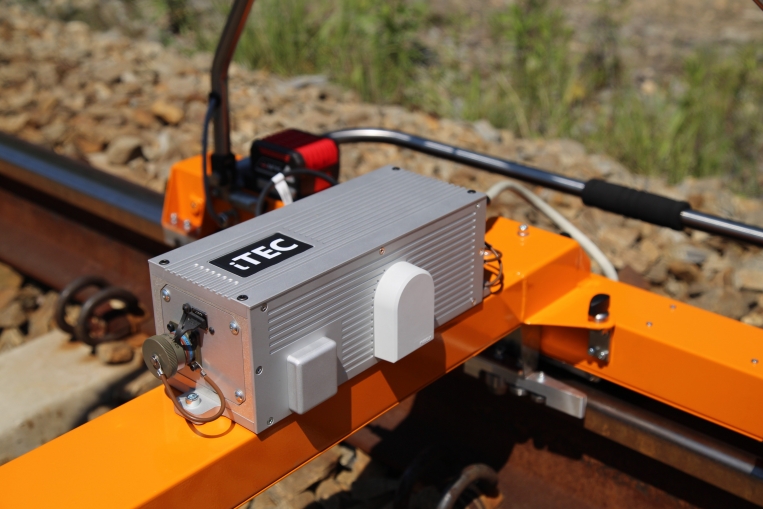

The trolley measures track geometry and records results of track condition visual inspections. Irregularities in two planes (horizontal and vertical versines) in relation to both rails are measured using an innovative inert system consisting of cutting-edge semiconductor gyroscopes and accelerometers. A new method for measuring horizontal and vertical irregularities enables the obtainment of highly repeatable measurement results. Calculated values correspond to measurements performed using a wire versine meter or measurements made by state-of-the-art measurement cars.

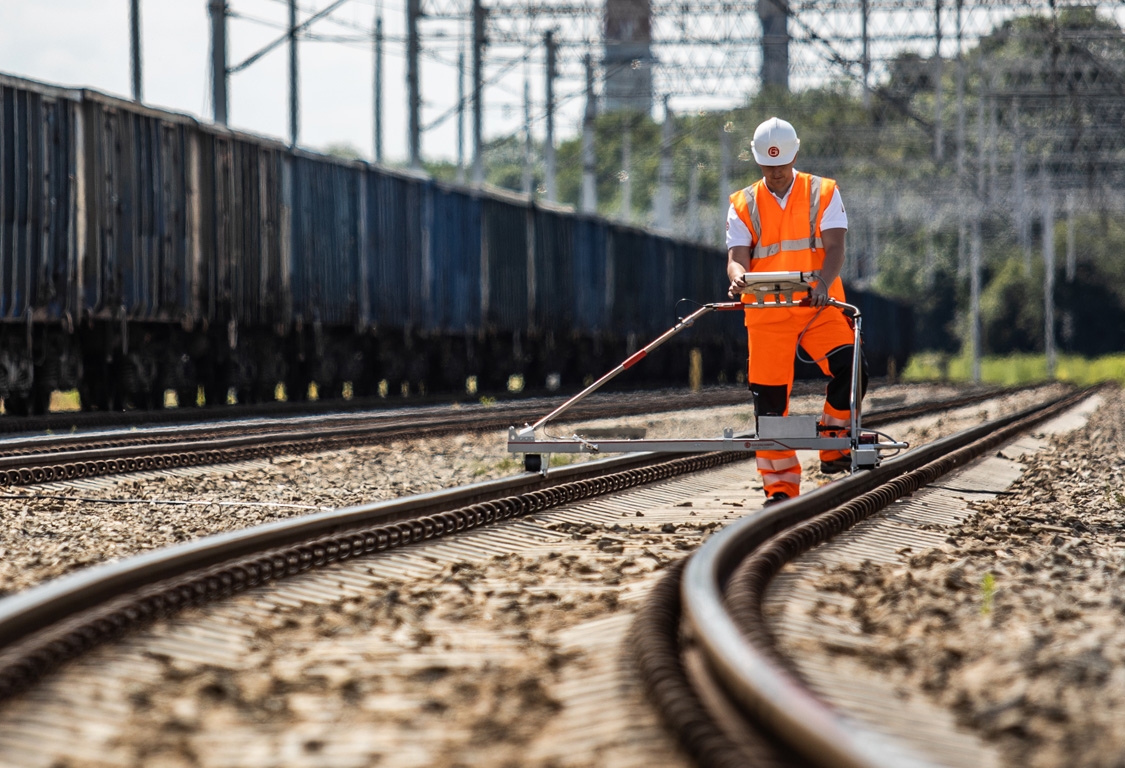

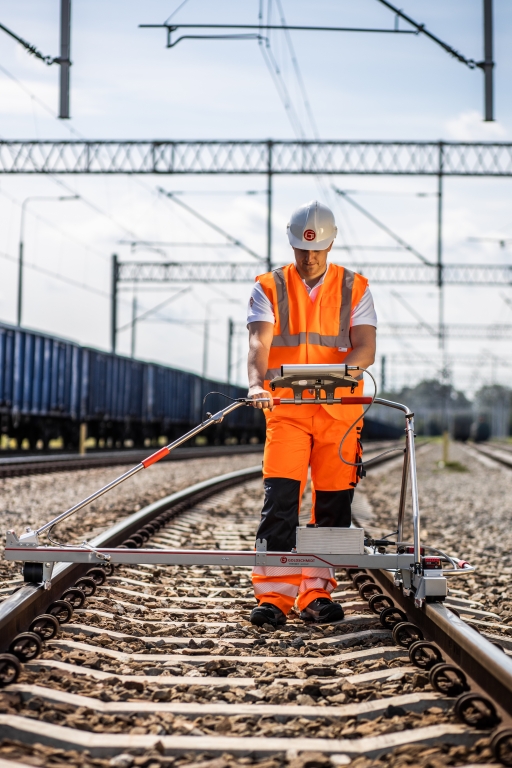

The trolley is easy to use and has a modular design enabling its transport by one person and fixing on a track in less than 5 minutes. In addition, the possibility of using the trolley on any track gauge significantly increases work productivity.
Track geometry measurement results such as values of width, cant, horizontal and vertical irregularities, covered distances and GPS positions are recorded in the device memory on a real-time basis. The trolley can be easily and quickly (ca. 26 kg in weight) removed from a track to allow the safe passage of trains. Measurements can be instantly resumed without calibration or zeroing.
The TEC trolley meets the requirements of the EN 13848-4 standard. Measurement results generated by the trolley are consistent with the requirements of the Polish Railway Lines (PKP PLK).
The trolley control panel can be removed, facilitating the overview of results after the completion of measurements. The transfer of data to a PC is performed via a USB Pendrive. The trolley is supplied with the GeoTEC System software (for PCs) enabling, among other things, the graphic presentation and comparison of measurement results as well as the printing of measurement reports or calculating typical track quality factors. Measurement results are also available in the tabular form containing track defect locations. Measurement data can be exported in MS Word, MS Excel and PDF formats.
The trolley is easy to use and has a modular design enabling its transport by one person and fixing on a track in less than 5 minutes. In addition, the possibility of using the trolley on any track gauge significantly increases work productivity.
Track geometry measurement results such as values of width, cant, horizontal and vertical irregularities, covered distances and GPS positions are recorded in the device memory on a real-time basis. The trolley can be easily and quickly (ca. 26 kg in weight) removed from a track to allow the safe passage of trains. Measurements can be instantly resumed without calibration or zeroing.
The TEC trolley meets the requirements of the EN 13848-4 standard. Measurement results generated by the trolley are consistent with the requirements of the Polish Railway Lines (PKP PLK).
The trolley control panel can be removed, facilitating the overview of results after the completion of measurements. The transfer of data to a PC is performed via a USB Pendrive. The trolley is supplied with the GeoTEC System software (for PCs) enabling, among other things, the graphic presentation and comparison of measurement results as well as the printing of measurement reports or calculating typical track quality factors. Measurement results are also available in the tabular form containing track defect locations. Measurement data can be exported in MS Word, MS Excel and PDF formats.

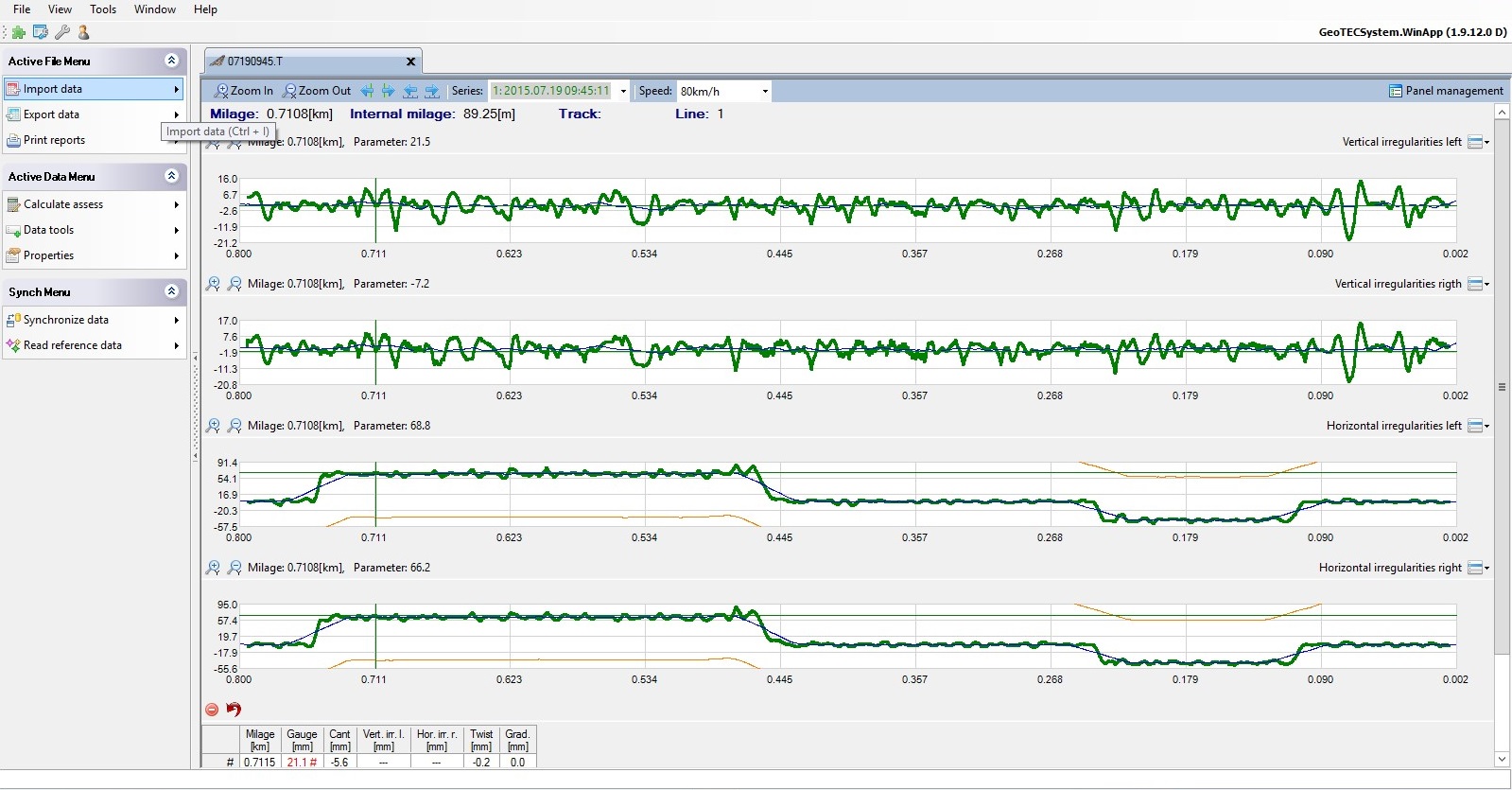

Screenshot of PC data processing software delivered with the trolley
Specifications

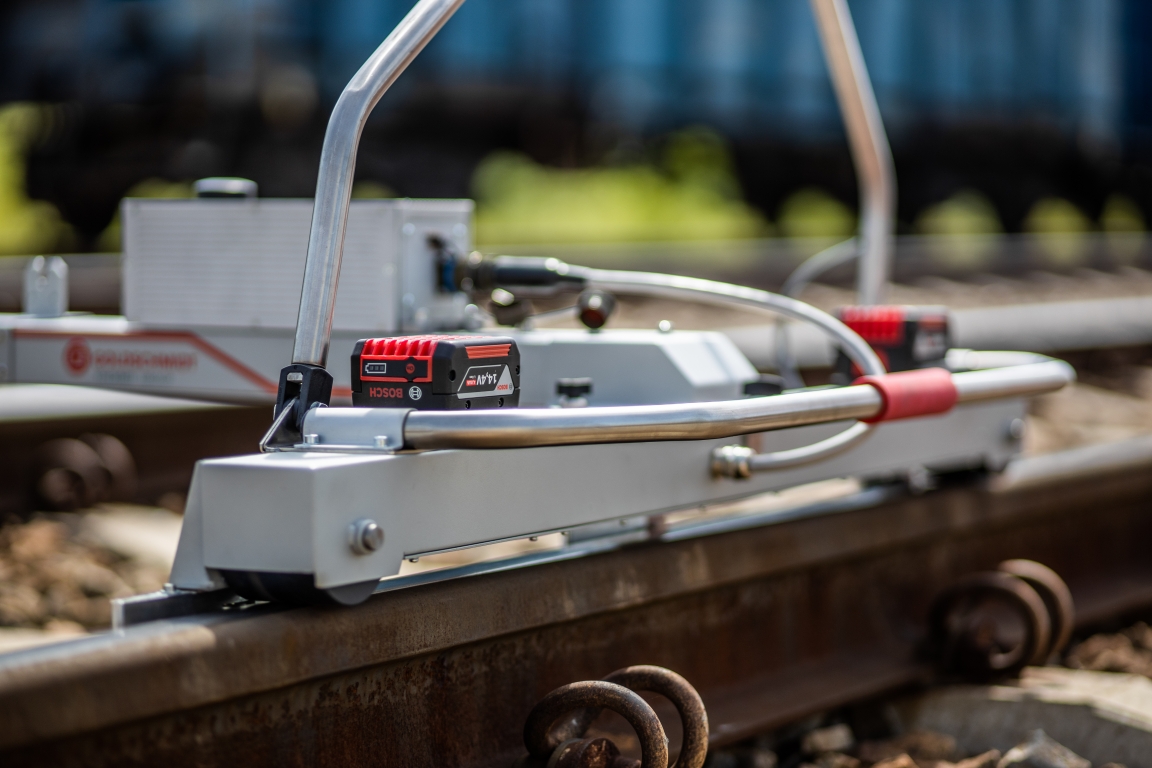

Measured parameters | Track gauge, cant, vertical irregularities, horizontal irregularities |
Measurement increment | 0.25 m |
Ranges | Track gauge: -15 ÷ +50 mm of the nominal value |
Cant: ±200 mm | |
Horizontal and vertical irregularities: full range | |
Accuracy | Track gauge: from ±0.5 mm |
Cant: ±1.5 mm | |
Vertical irregularities: ±1 mm / 10 m | |
Horizontal irregularities: ±1 mm / 10 m | |
Technology of irregularity measurement | Inertial measurement |
Operating conditions | Temperature: -20 ÷45 °C |
Humidity: 15 ÷ 85%, no condensation | |
Memory capacity | 430 km (measurement speed 1.5 m/s) |
Weight | 26 kg |
Functionality | Trolley records the measurement route using the on-board GPS receiver |
Display legible even in direct sunlight, as well as in the tunnel; visual signalling of exceedings | |
Transferring of the measurement data to the PC via a USB Pendrive | |
Software for printing measurement reports, archiving and comparing measurement results | |
Continuous work | Replaceable batteries making continuous operation possible (about 3 hours for one set of batteries) |
Availability | The trolley is available for all track gauges, e.g.: 914, 1000, 1067, 1435, 1520, 1524, 1600, 1668, 1676 mm |
Data formats | PDF, MS Word, MS Excel |
Calculated parameters | Width gradient |
Track twist | |
Alignment in D1 range | |
Longitudinal Level in D1 range | |
Horizontal and vertical irregularities on a chord of up to 25 m |
