TRACKSCAN METRO

TRACKSCAN METRO

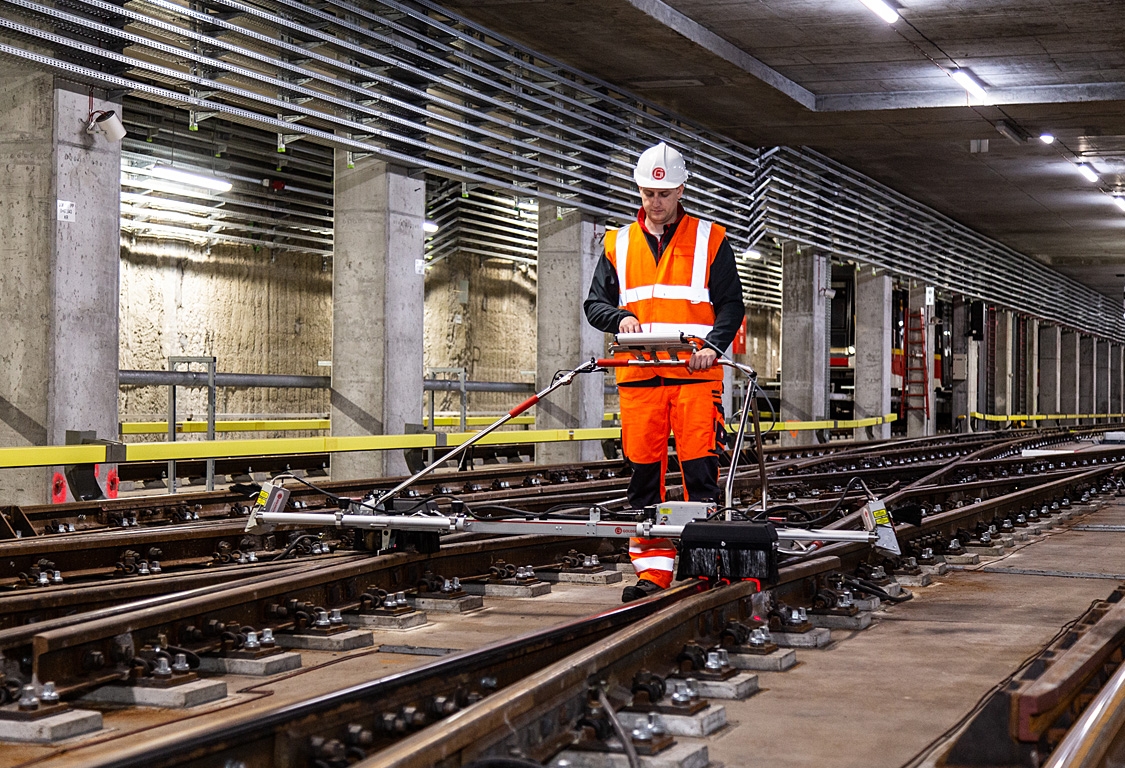

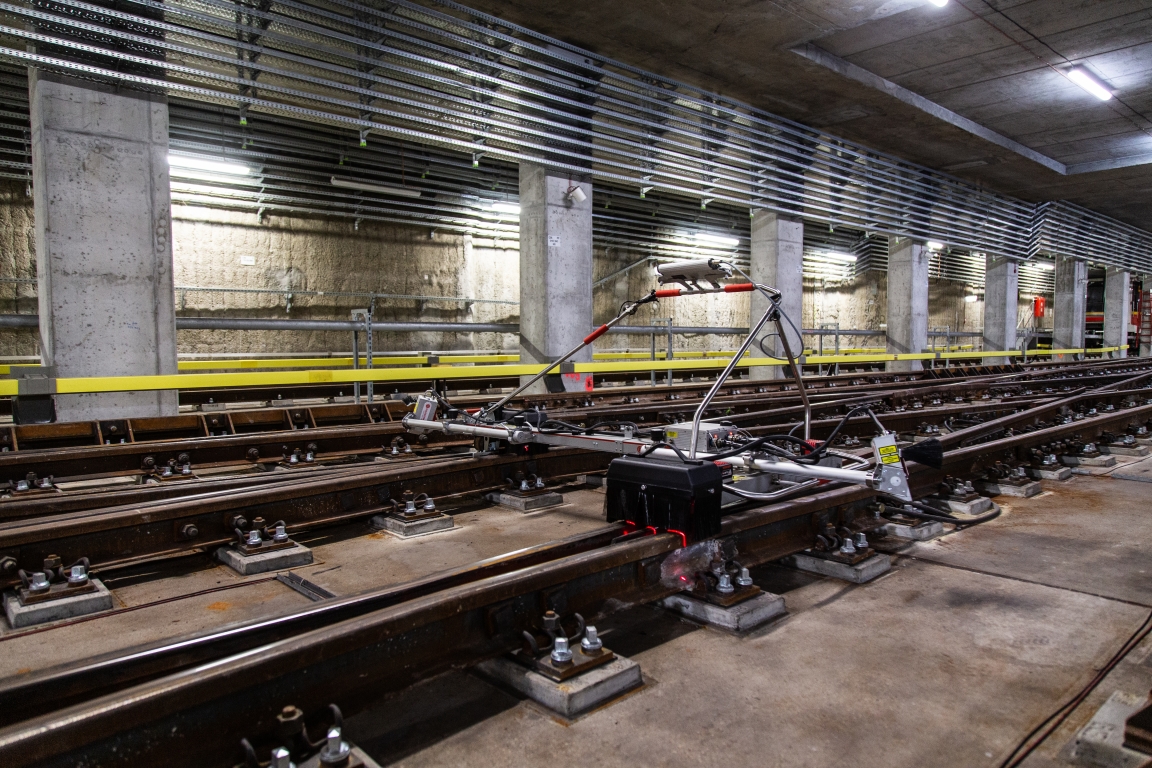

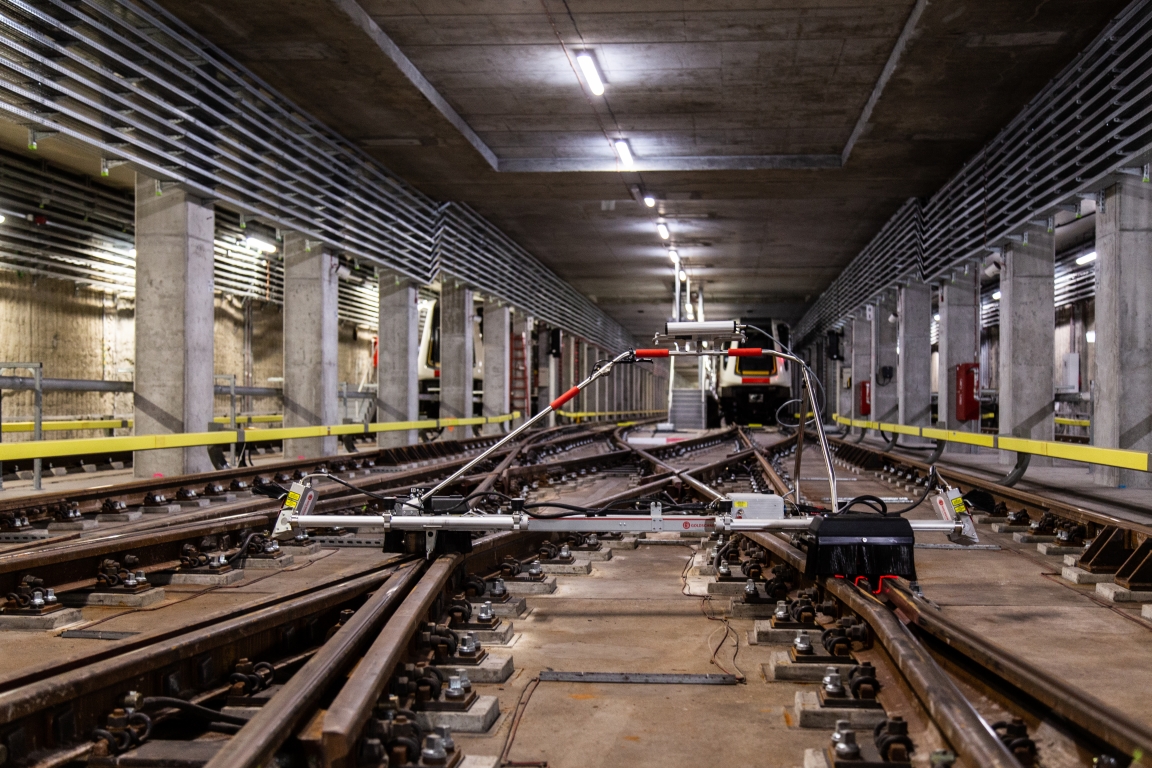

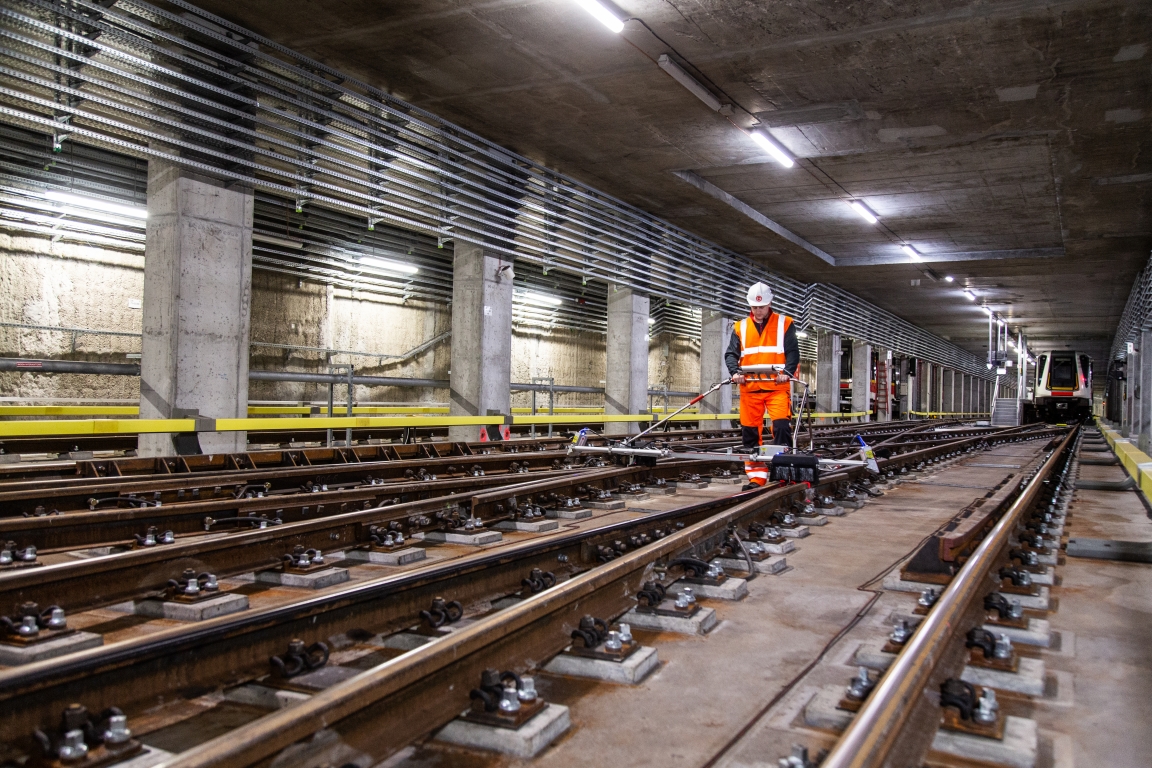

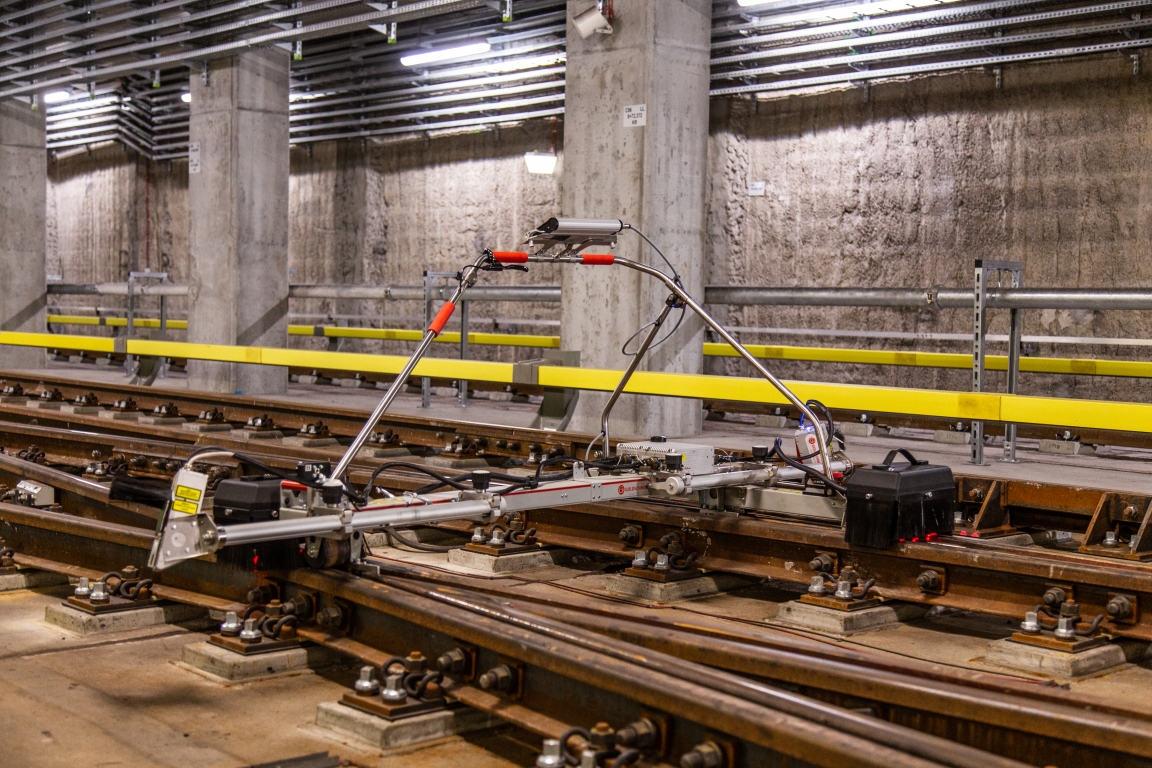

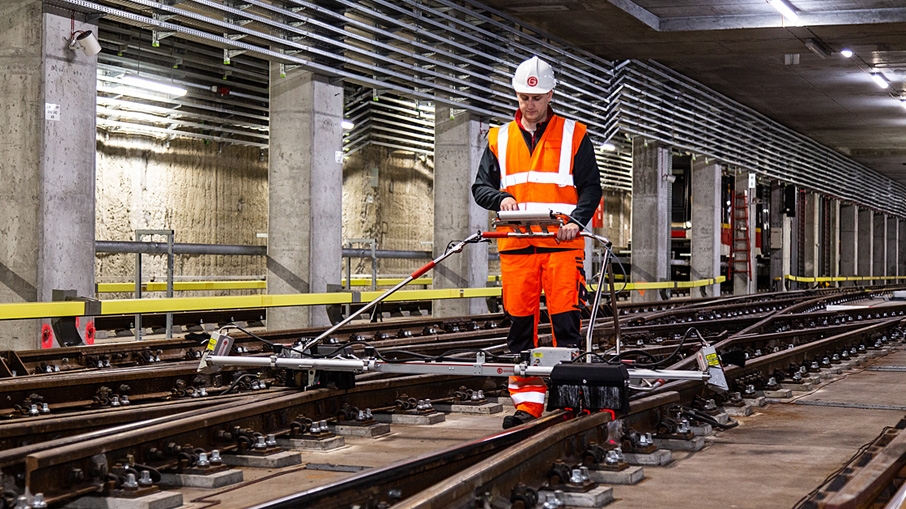

The TRACKSCAN METRO device consists of two components devices for full track geometry measurement and rail headwear + the measurement of conductor rail for both sides. Additionally, the device is able to record results of visual track inspections which help the user with analysis in dedicated software

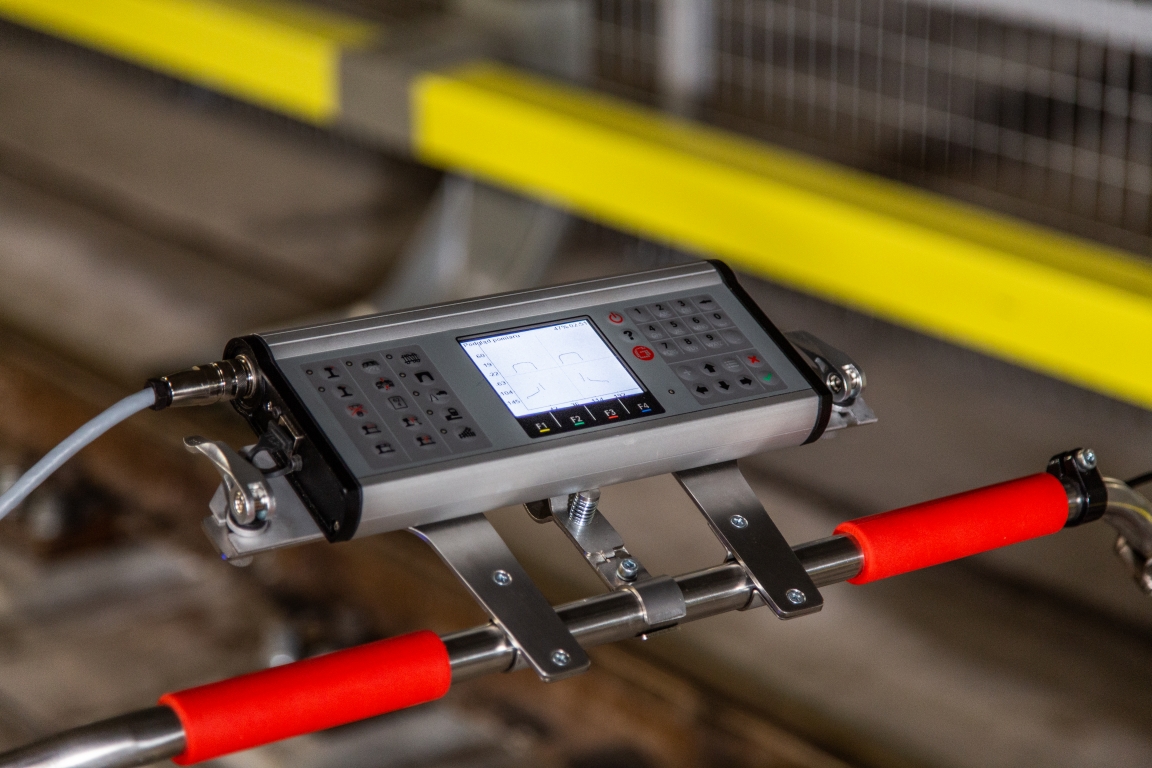

The trolley is provided with a colourful backlit display and a comfortable keyboard. Measurement results and information about exceedings of allowed values are perfectly visible even at night. Dedicated keys of typical defects facilitate the recording and annotation of cracks in welds or rails, missing bolts, sleepers requiring replacement, etc.

The trolley control panel can be removed, facilitating the overview of results after the completion of measurements. The transfer of data to a PC is performed via a USB Pendrive.


Screenshot of the PC measurement data analysis and reporting software delivered with the trolley


The trolley is supplied with the GeoTEC System software (for PCs) enabling, among other things, the graphic presentation and comparison of measurement results as well as the printing of measurement reports or calculating typical track quality factors. Measurement results are also available in the tabular form containing track defect locations. Measurement data can be exported in MS Word, MS Excel and PDF formats.

In addition, the software enables the saving of measured profiles in the DXF format, comparing measured profiles with model profiles, automatic sizing and printing of rail profile-related reports.


Specifications

Dimensions (L x W x H) 1 250 x 2 050 x 870 mm with laser heads for measuring conductor rail (folded)
1 250 x 2 710 x 870 mm with laser heads for measuring conductor rail (unfolded)
Weight 50 kg
Measuring increment 0.25 m
Memory capacity 1 400 km
Gauge (measured) Accuracy: ±0.5 mm
Measurement range: -15 ... +50 mm
Cant (measured) Accuracy: ±1.5 mm
Measurement range: ±200 mm
Twist (calculated) Accuracy: ±3.0 mm
Measurement range: ±200 mm
Gradient (calculated) Accuracy: ±1.0 mm
Measurement range: ±200 mm
Horizontal irregularities (extrapolated) Accuracy: ±0.2 mm
Measurement range: ±5 mm
Vertical irregularities (extrapolated) Accuracy: ±0.2 mm
Measurement range: ±2 mm
Rail cross-profile (measured) Accuracy: ±0.3 mm
Resolution: 0.1 mm
Rail head profile: left and right
The vertical position of the conductor rail Accuracy: ±0.5 mm
Measurement range: 130 - 200 mm
Resolution: 0.1 mm
The horizontal position of the conductor rail Accuracy: ±0.5 mm
Measurement range: 625 - 665 mm
Resolution: 0.1 mm
Operating conditions Temperature: -10 °C ... 50 °C
Humidity: 15 ... 85 %, no condensation
Rain and frost resistant
BENEFITS: Fast and accurate measurement of any type of rails

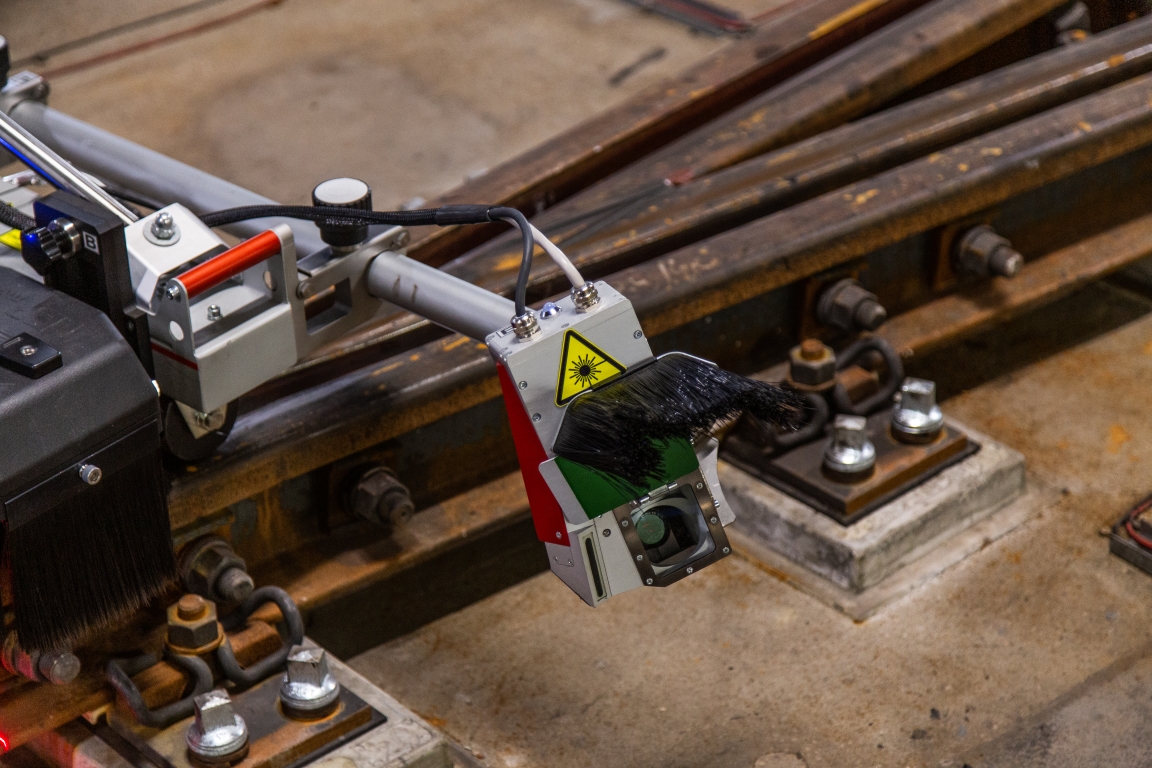

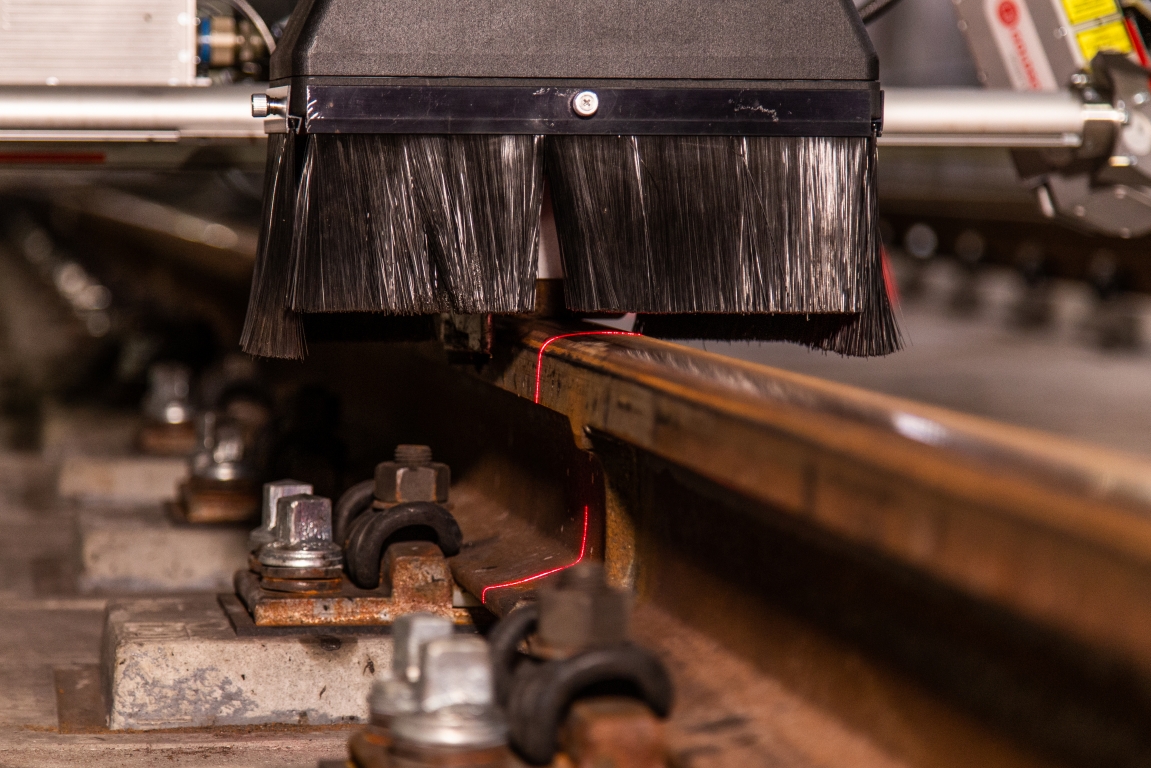

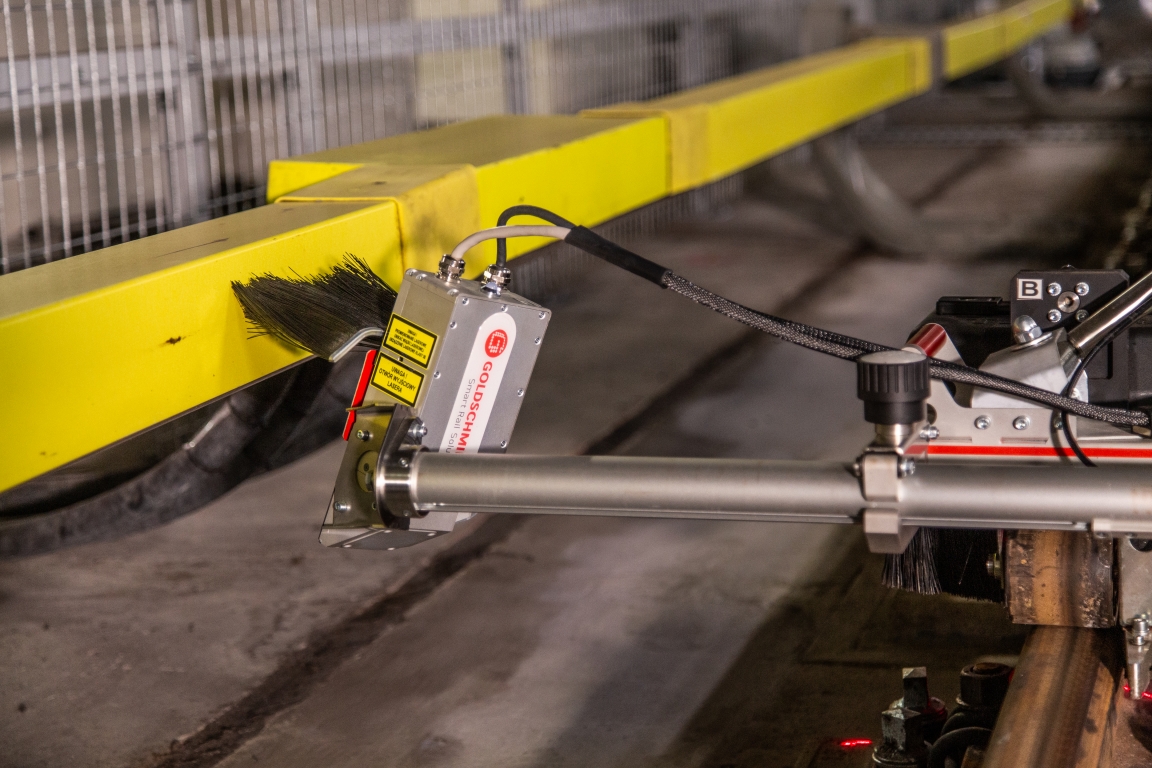

Laser measurement heads enable accurate measurement of rail profiles and determination of rail head wear parameters
Easy operation of the device during measurements
Hot-swappable batteries – charged batteries on hand enable unlimited operating times
On-board GPS receiver for documentation of measurement point coordinates
Available for all track gauges
Reliable measurement data acquisition and transfer via USB Stick
Flexible, custom-made software, export of measured data to documents in Excel, Word, PDF, DXF, and CSV formats
CONTENTS: Trackscan Metro device, incl. 2 batteries
2 additional batteries
Device charger
Replacement battery
Transport box
PC software GeoTEC, 1 licence
