Trackscan Compact

Trackscan Compact

The TSC trolley measures track geometry. The measurement
results include values of track gauge, cant, horizontal and vertical irregularities along with the calculated gradient and twist parameters.
See more
Trackscan Cadd-e

Trackscan Cadd-e

The Trackscan Cadd-e is equipped with the laser-inertial
non-contact measurement system. The system measures track geometry parameters and both rail cross-section profiles...
See more
Trackgauge Digital

Trackgauge Digital

The TGD portable measuring device evaluates the track
and switch geometry. The device is lightweight, reliable,
easy-to-use, and it is operated by an application on the Android.
See more
Trackscan Profile

Trackscan Profile

The trolley measures track geometry as well as railway and
tramway rail head profiles and records results of track condition visual inspections.
See more
Trackgauge Solar

Trackgauge Solar

The TGS digital track and turnout gauge measures track
and turnout geometry. The TGS is equipped with a solar battery enabling continuous operation and a colour display.
See more
Laser Measurement Systems

Laser Measurement Systems

The measured wheel profile parameters include the entire wheel tread profile, flange height Sh, flange width Sw, slope qR, wheel diameter D, and back-to-back distance Az.
See more

Wheel measurement

Back to the list
GAUGE FOR MEASUREMENT OF TRAM BOGIE DIAGONALS: PPGW

GAUGE FOR MEASUREMENT OF TRAM BOGIE DIAGONALS: PPGW

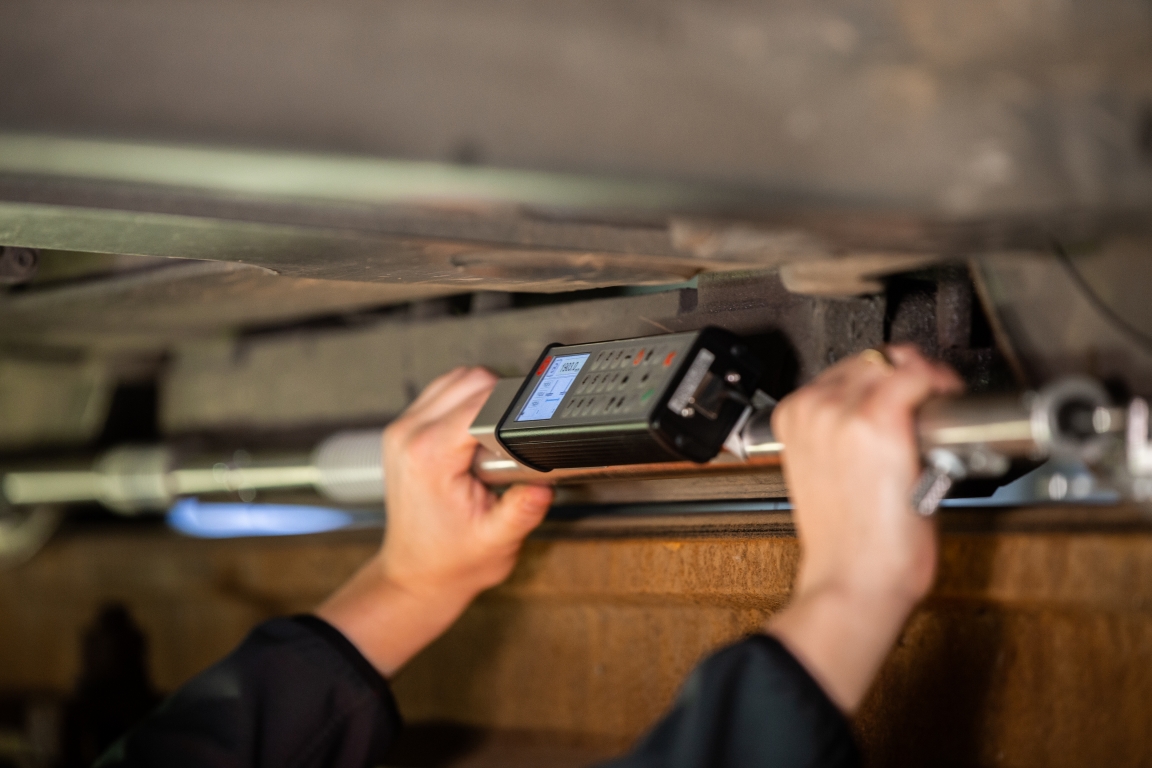

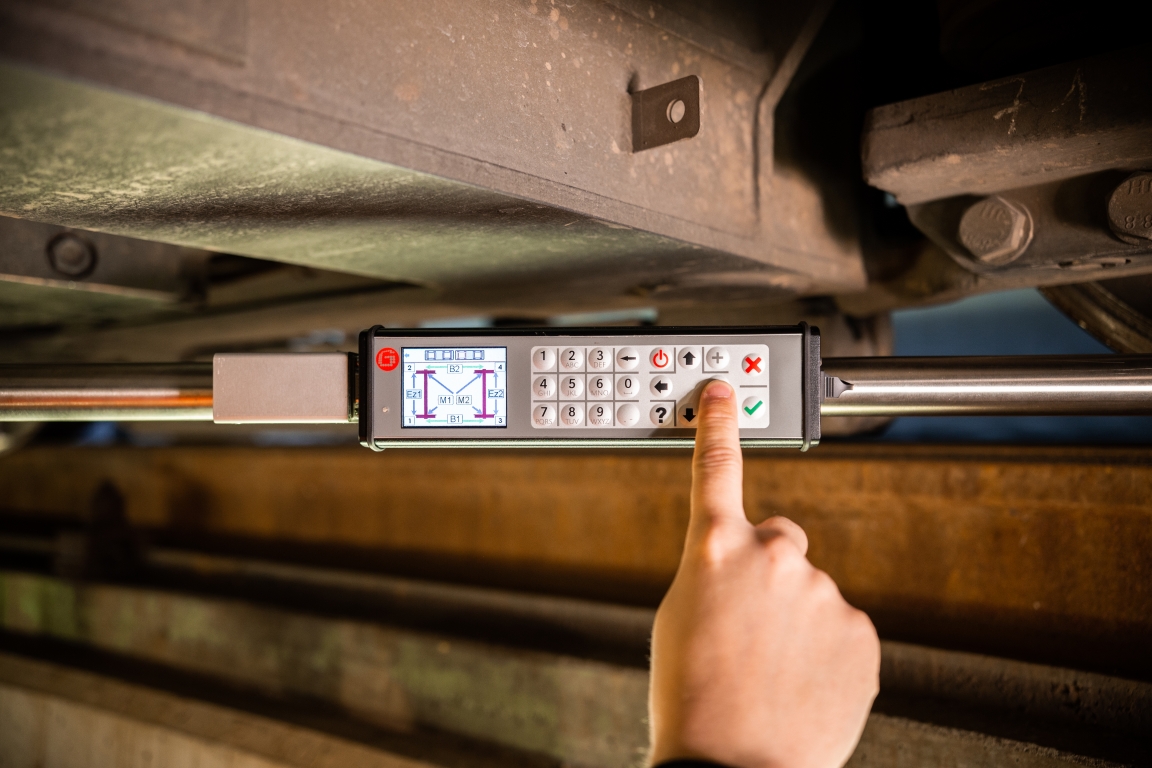

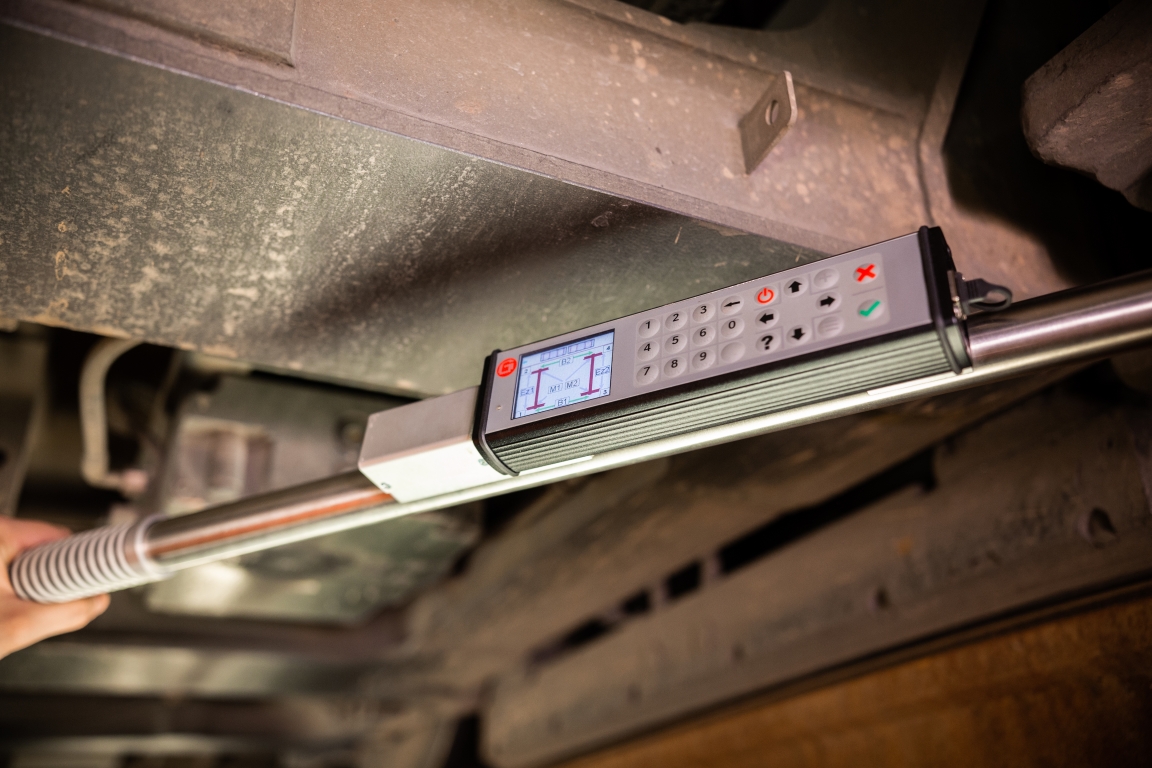

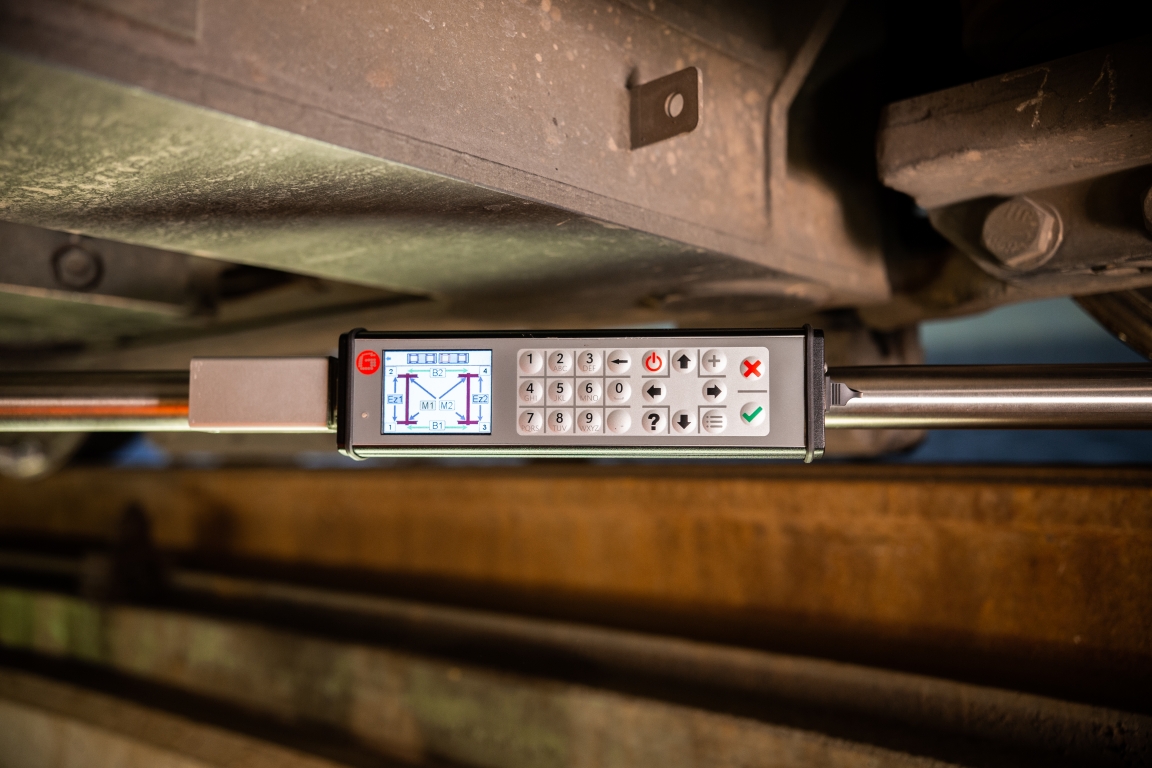

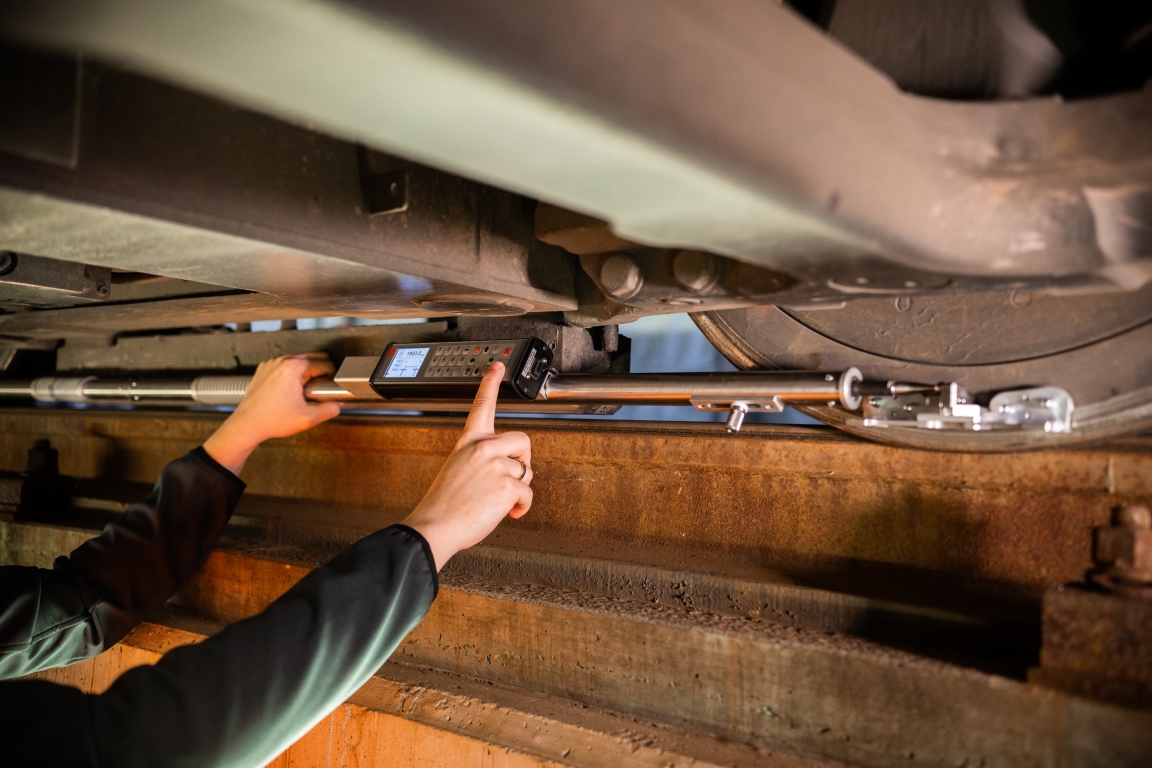

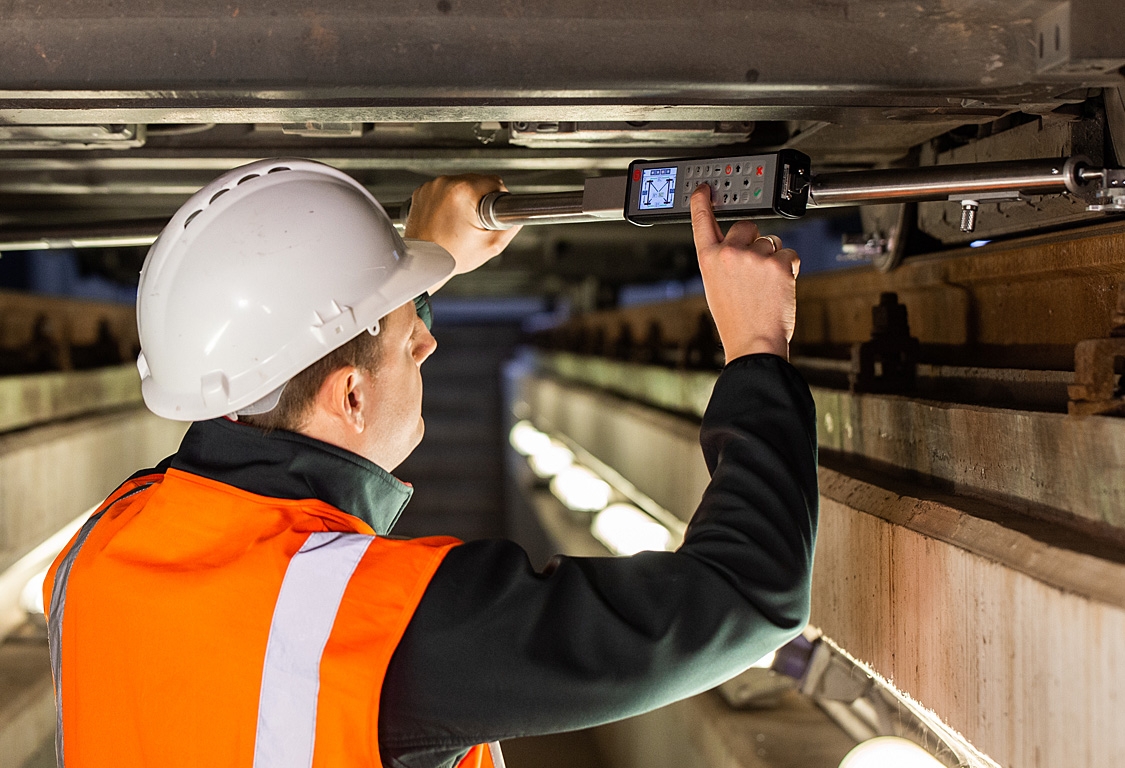

The gauge is designed for measuring geometrical parameters of tram bogies; as follows:
  • M1 and M2: lengths of car bogie diagonals (ranges: M1800 - 2245.0 - 2289.0, M1850 - 2286 - 2329, M1900 - 2327 - 2370)
  • B1 and B2: car bogie wheel base values (ranges: B1800 - 1775 - 1818, B1850 - 1826 - 1869, B1900 - 1876 - 1919)

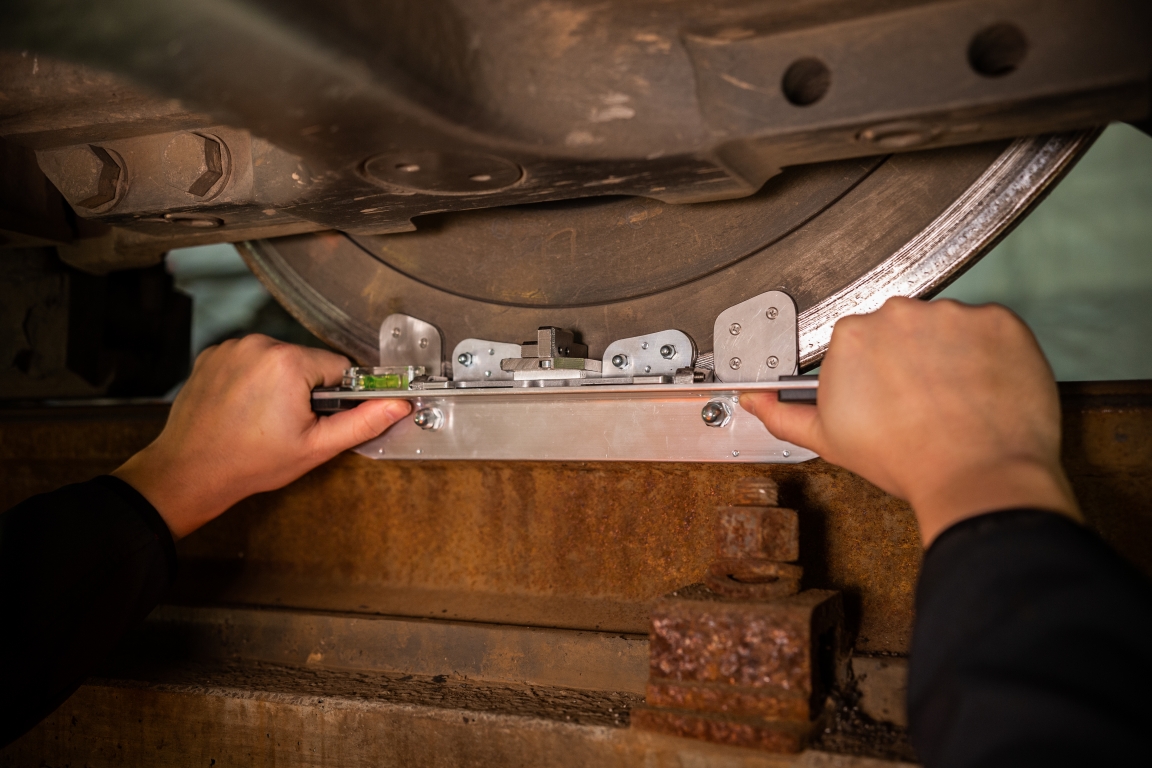

  • Az': back to back distance values for rims and wheels

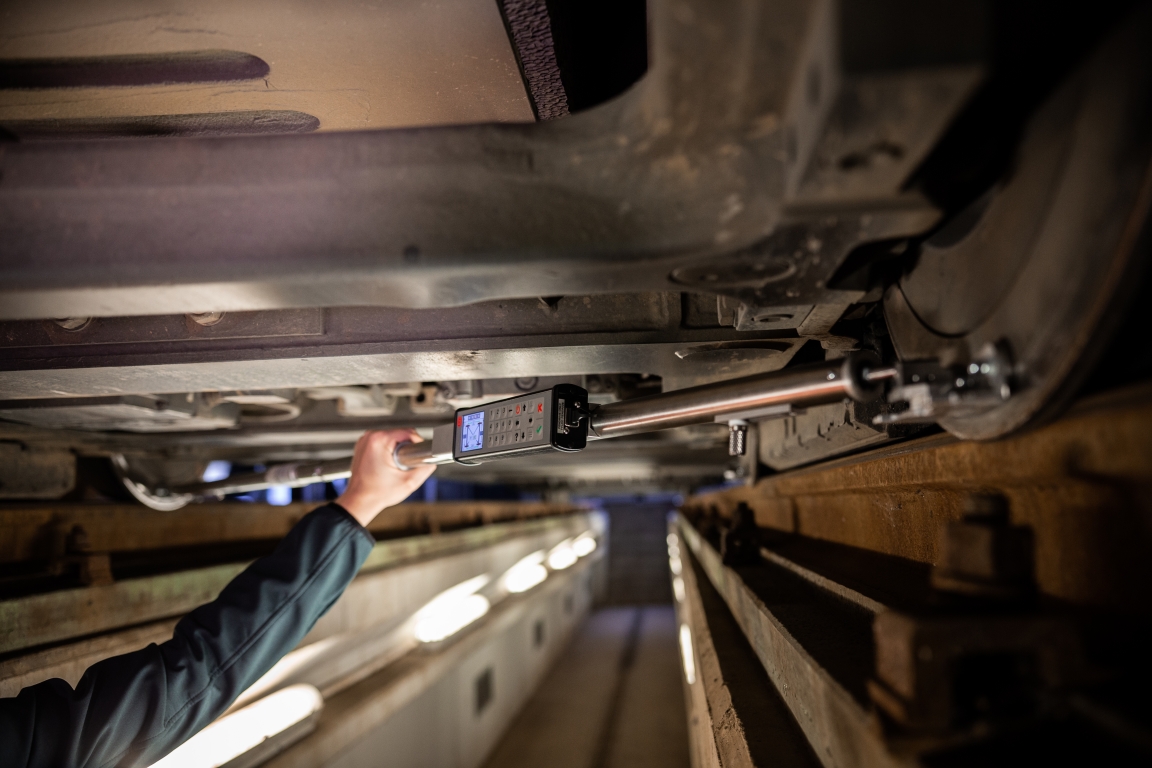

The measurements may be done for the full range of wheel rolling diameters: new and worn out to the limit of wear: from 540 mm to 660 mm. The equipment is designed for use by a single operator working in an inspection pit.
  • Measurement accuracy: ± 0.2 mm
  • Weight: 3.0 kg
The diagnostic PC software for PC delivered with the equipment makes management of the measurement data possible, its analysis, and generating reports efficiently from the measurement data.

Specifications

Memory capacity 8000 bogies
Operating temperature -20°C ÷ +45°C (temperature compensation of readings)
Operating time when fully charged: 24 h
Backlit display readable even in direct sunlight
Instrument is insulated ready to work immediately after switching on
